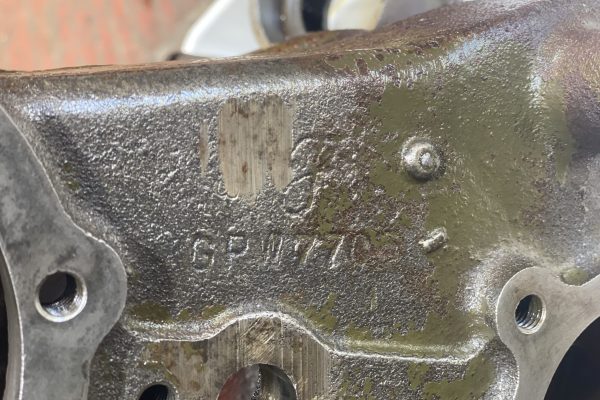

Ford GPW Transmission /Transfer Case Totally Original and Untouched.

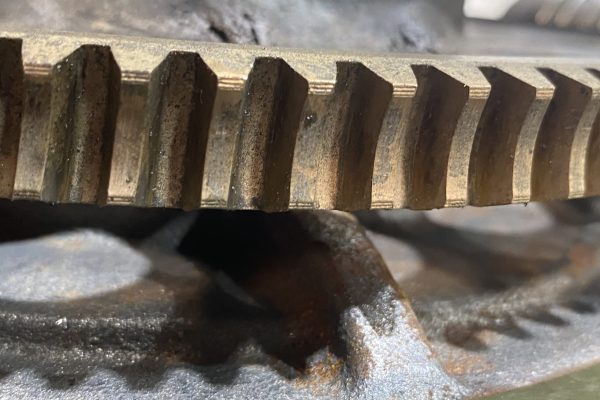

This GPW T-84 transmission and T-18 Transfer Case came in for rebuild.

The Jeep was a genuine barn find and had been parked up in a Farm building for many, many years.

The gearbox and Transfercase had never been apart since its build in WW2.

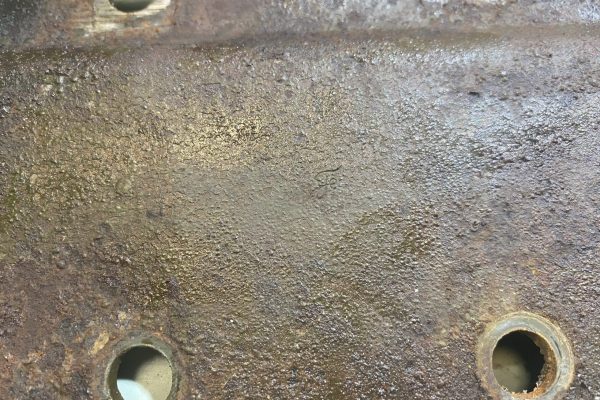

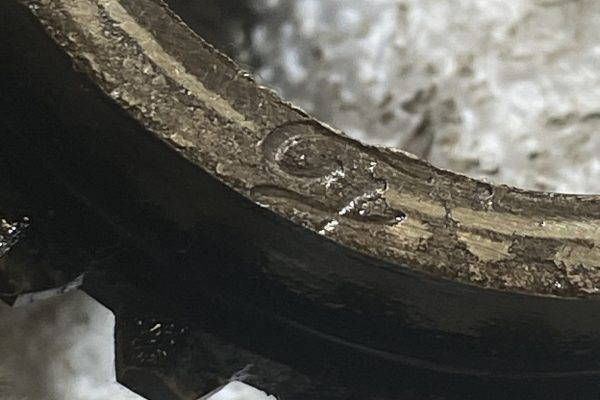

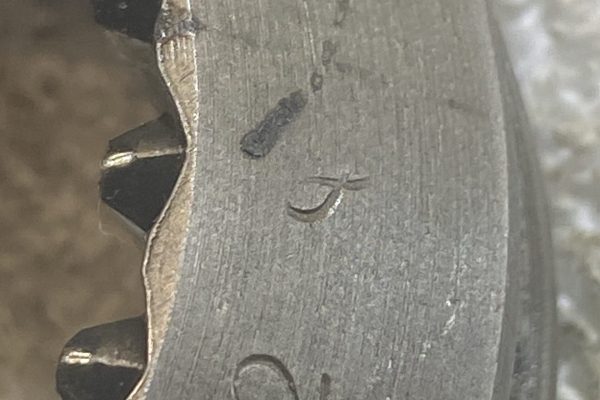

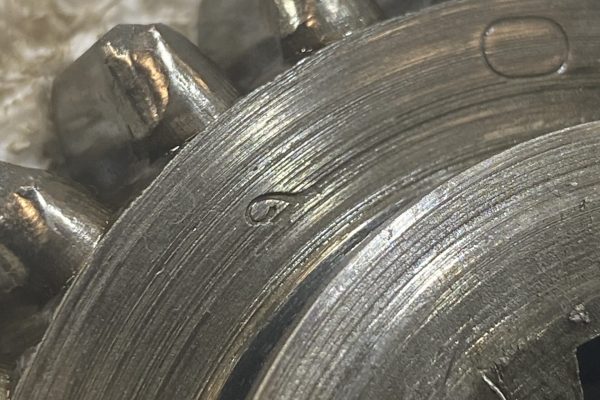

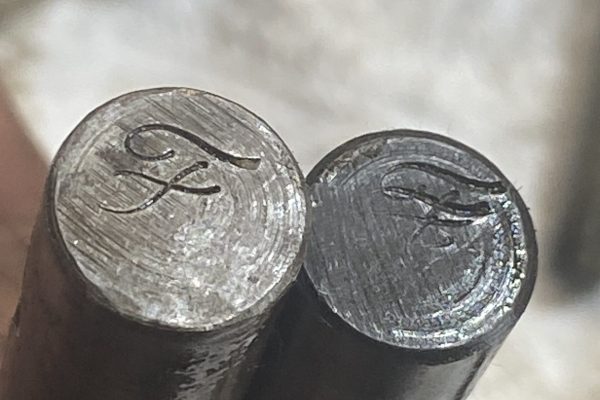

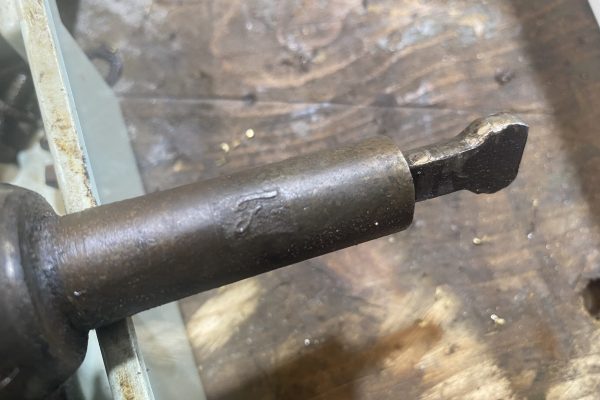

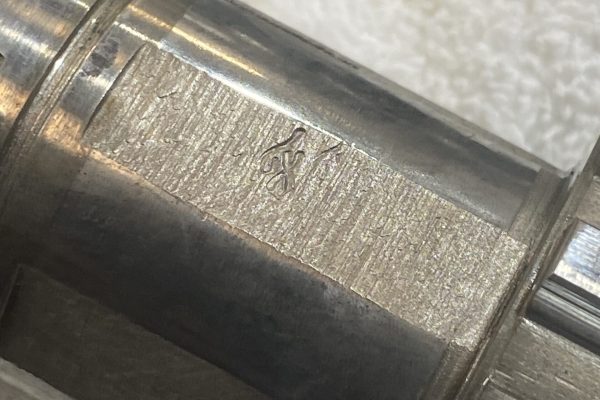

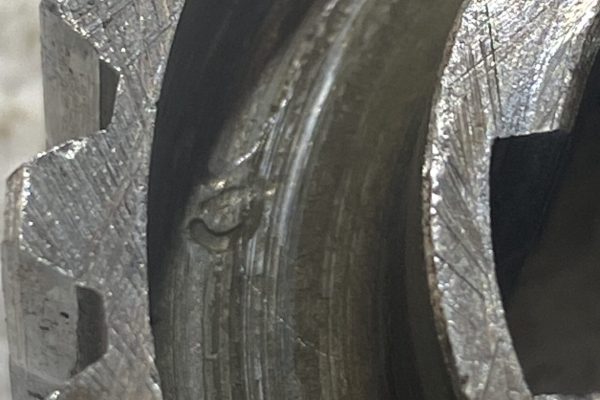

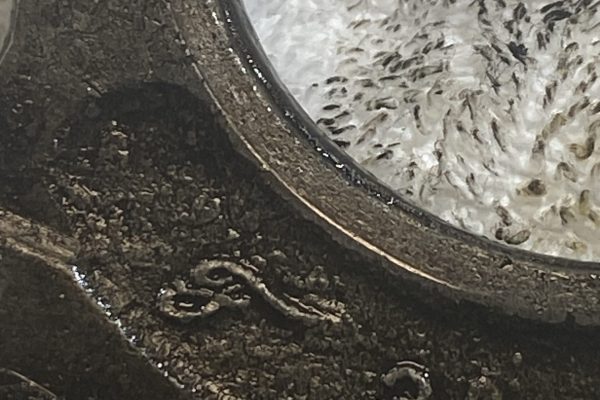

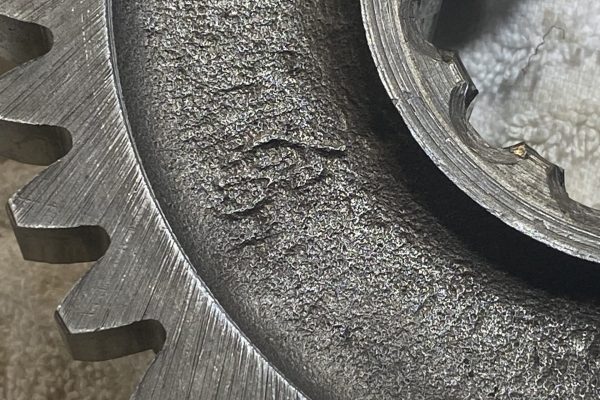

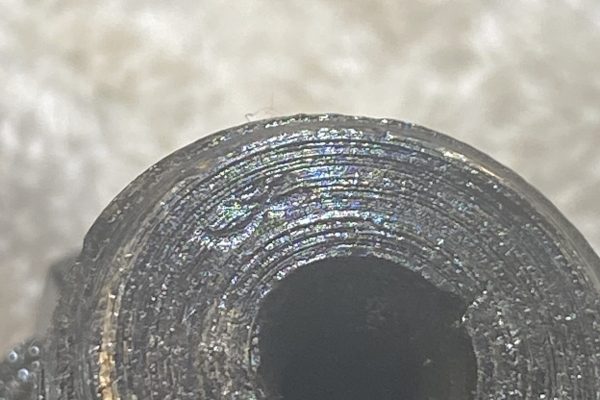

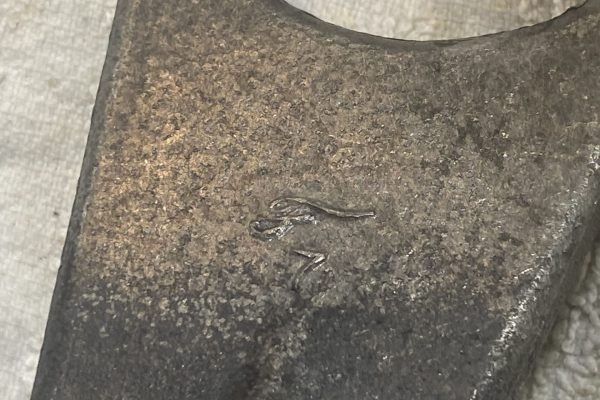

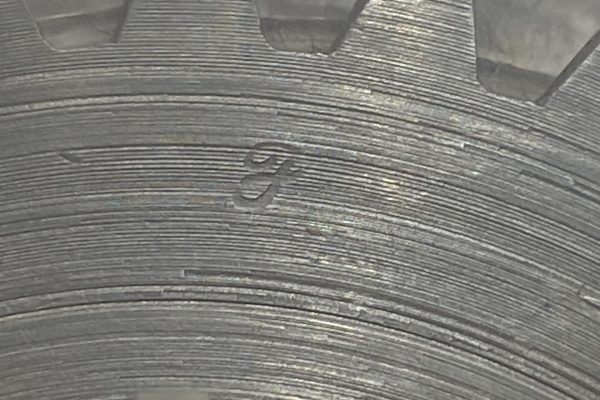

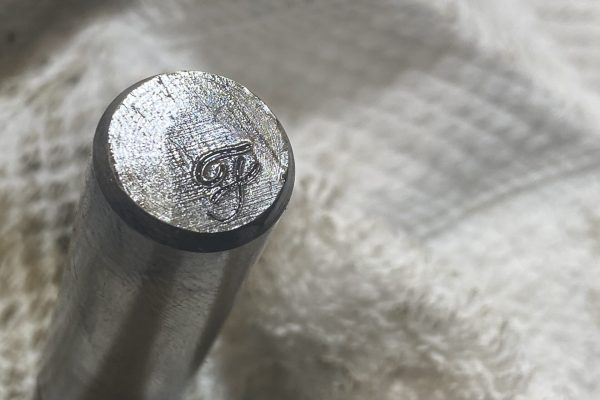

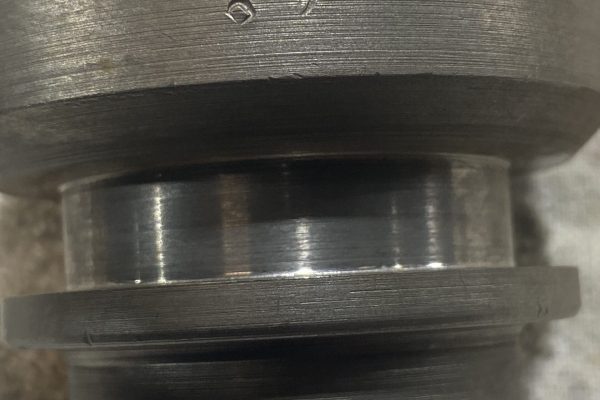

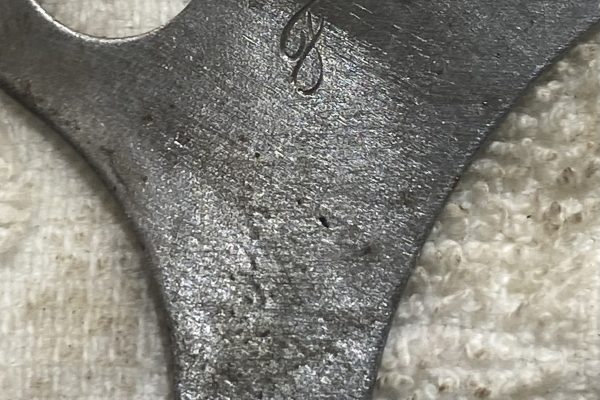

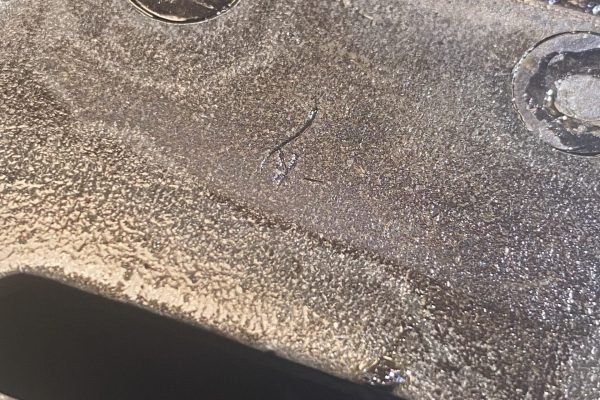

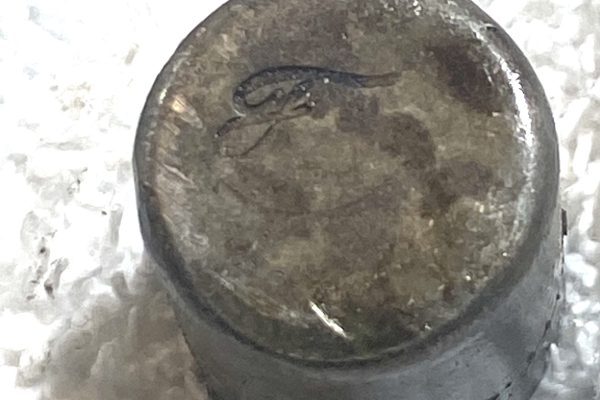

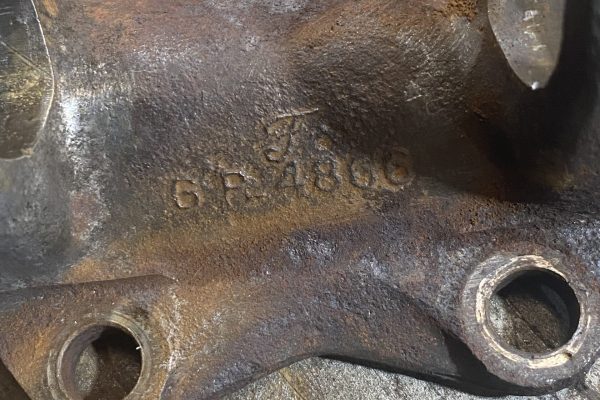

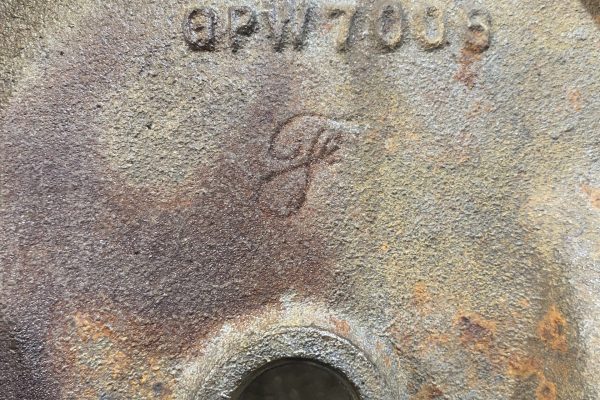

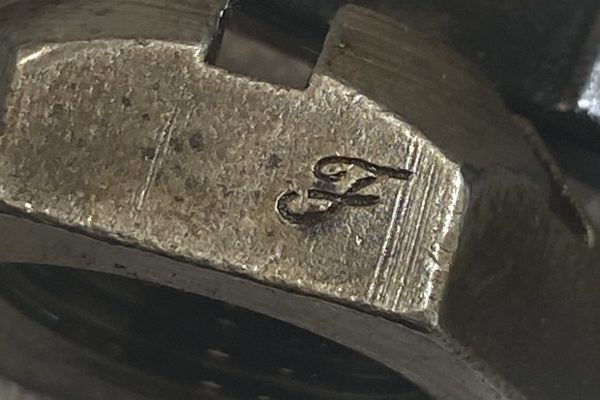

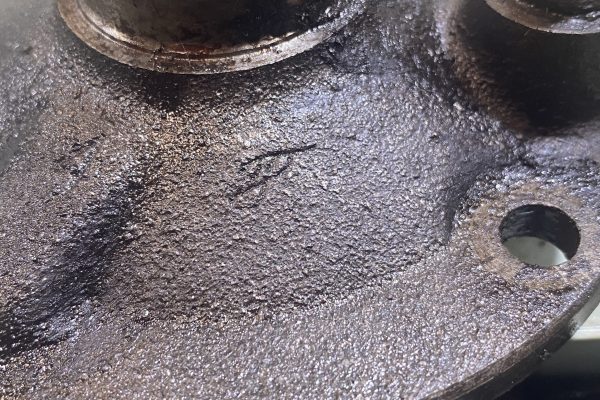

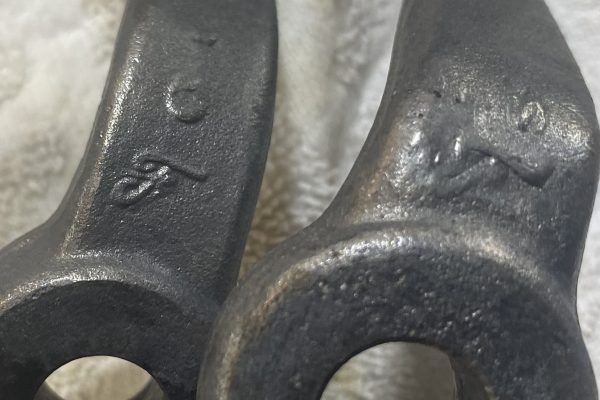

The following pictures are a great source of reference for Ford script markings.

Almost every gear, shaft, casting, nut and bolt were Ford Marked.

Its not often you see such an original example.

To see the range of gearbox and transfer case parts we can supply click

T-84 Transmission

T-18 Transfer Case

Please enjoy !

IMG_2036 2
IMG_2043 2
IMG_2037 2
IMG_2064 2
IMG_2088 2
IMG_2071 2
IMG_2074 2
IMG_2105 2
IMG_2096 2
IMG_2095 2
IMG_2094 2
IMG_2091 2
IMG_0856 2
IMG_2093 2
IMG_2084 2
IMG_2129 2
IMG_2126 2
IMG_2109 2
IMG_0853 2
IMG_2157
IMG_0851 2

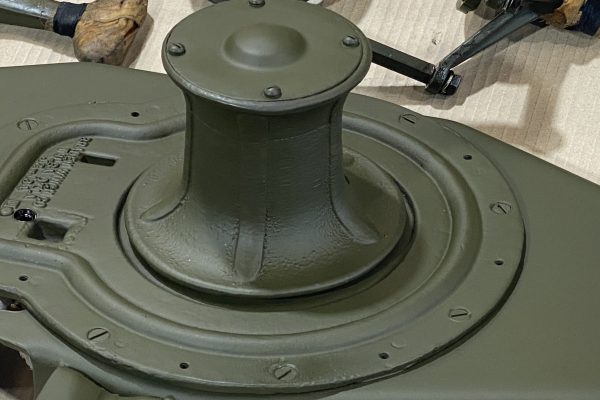

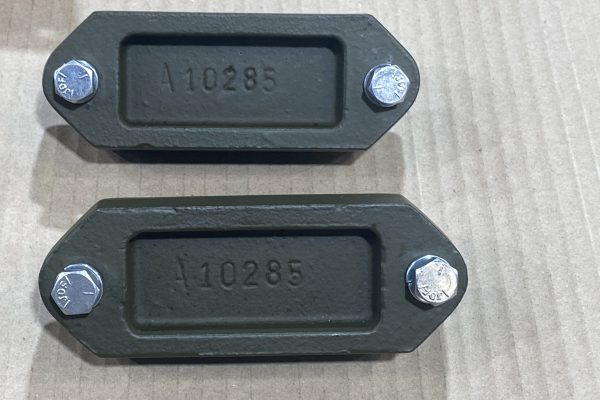

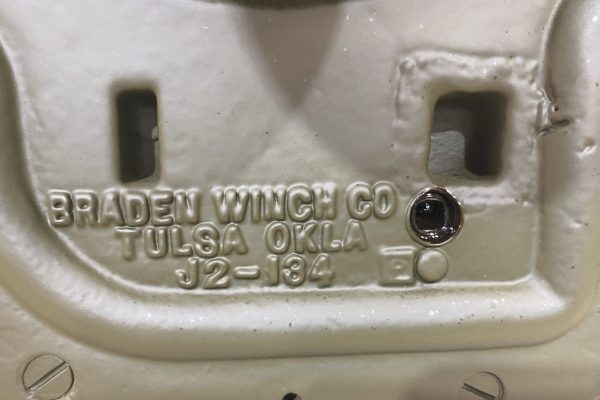

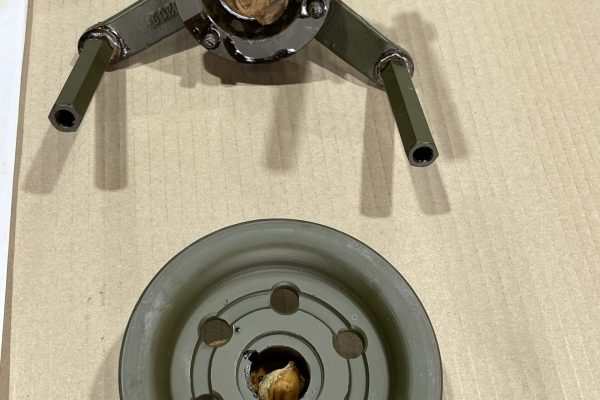

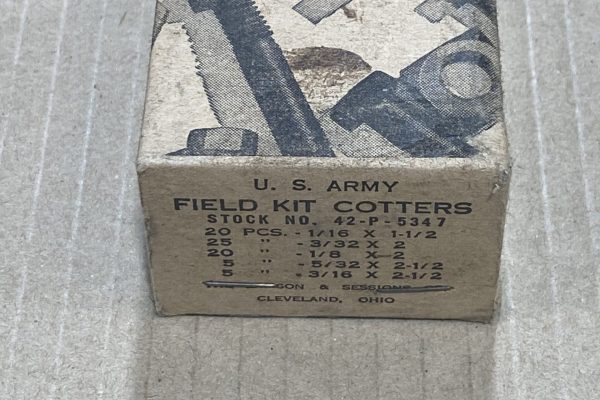

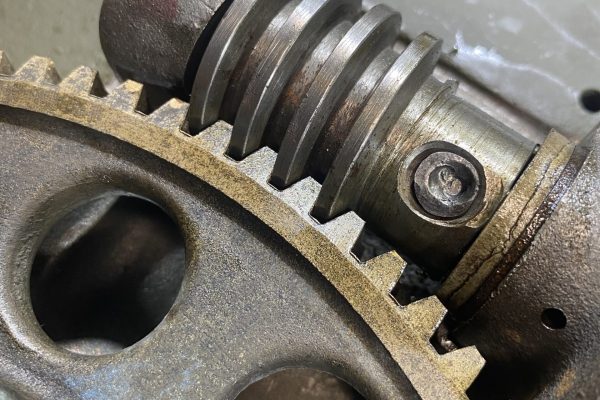

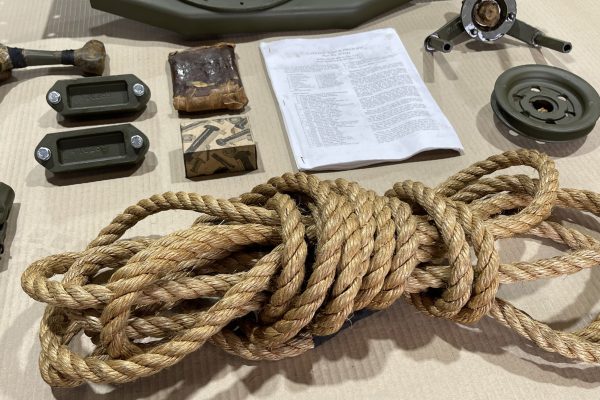

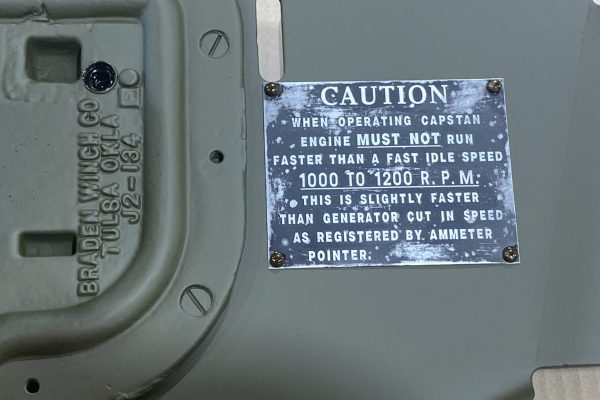

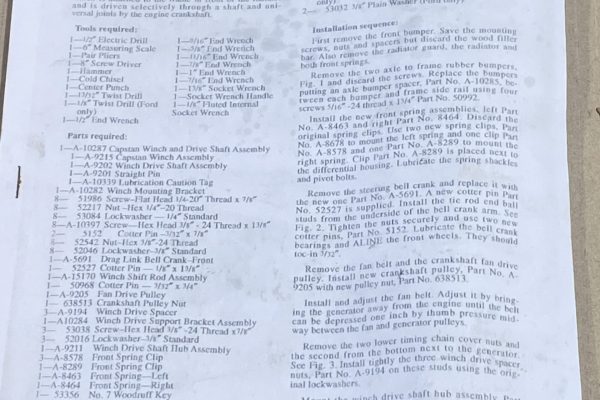

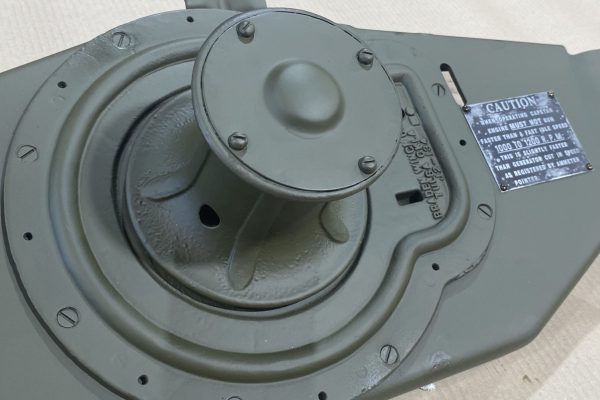

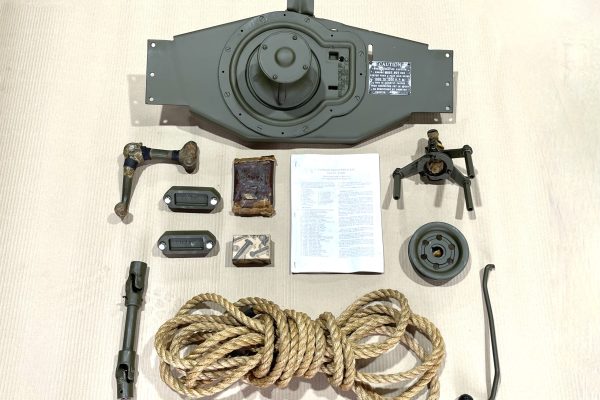

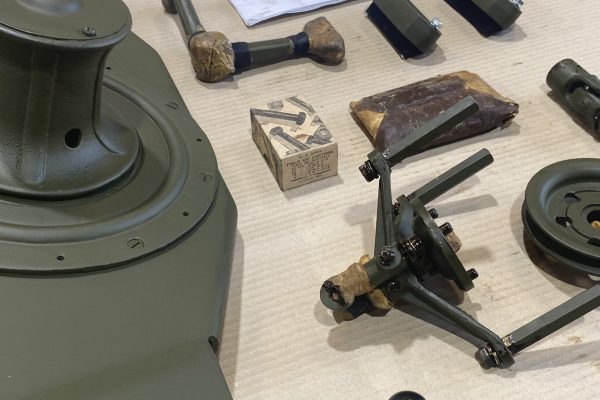

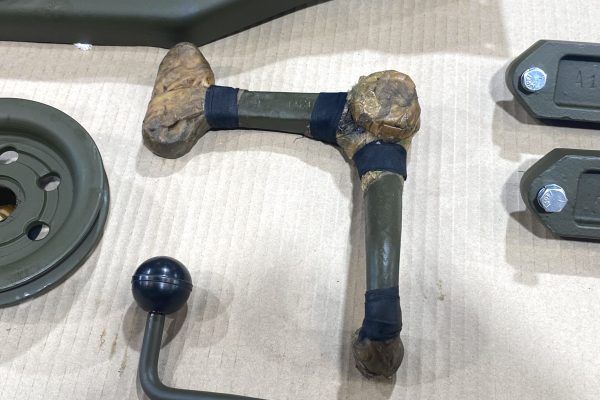

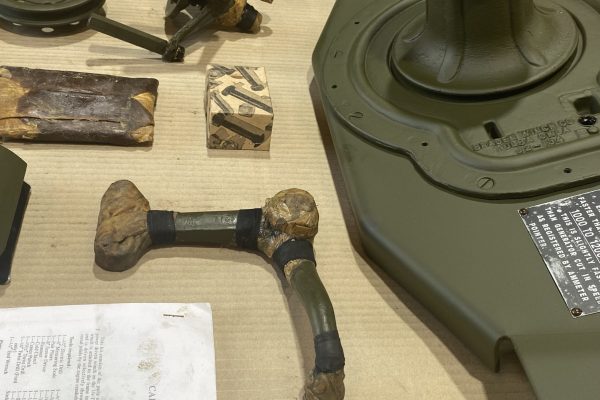

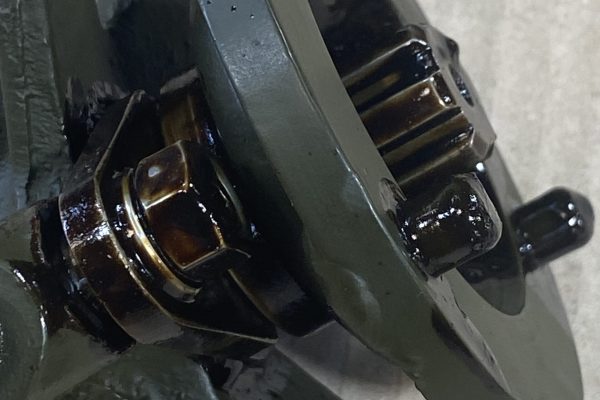

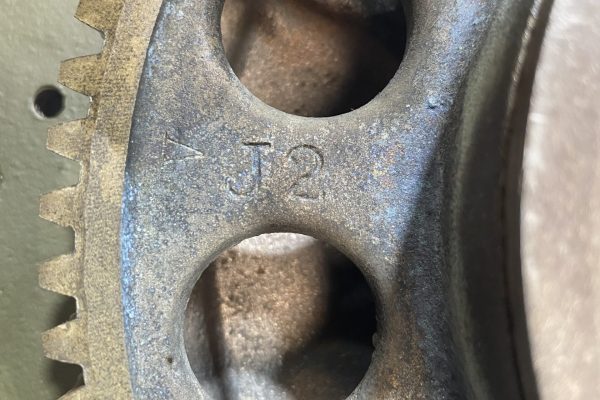

Braden J2 Capstan Winch Restoration

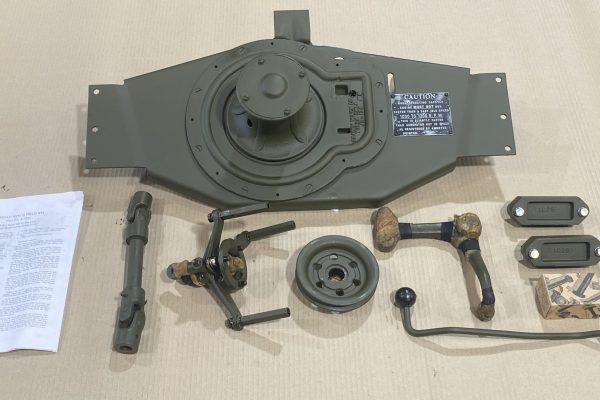

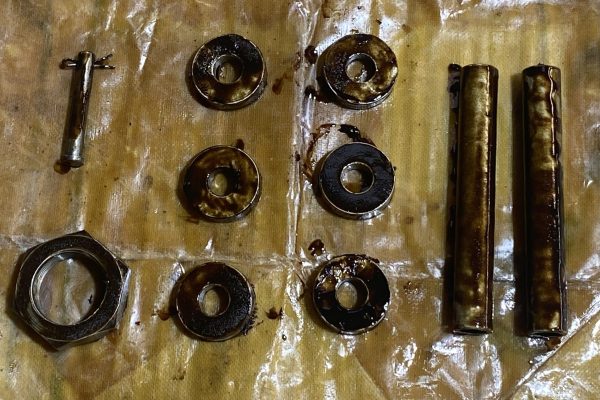

One of the most sort after Jeep accessories, the Braden J2 Capstan winch.

We have undertaken this restoration in house, carefully checking all components, replacing gaskets and oil seals, painting and test running, then finally wrapping up in preservative material to keep all parts safe for the future.

Many parts had to be sourced and tested to make up a kit that is ready to fit.

We look forward to seeing this winch working on a Jeep in the future.

If you are looking for any tools / accessories please click here on ACCESSORIES/TOOLS

IMG_3987 2
IMG_3988 2
IMG_3977 2
IMG_3972 2
IMG_4001
IMG_4004 2
IMG_4003 2
IMG_4002 2
IMG_3998 2
IMG_4012 2
IMG_3993 2
IMG_3983 2
IMG_3973 2
IMG_3971 2
IMG_3967 2
IMG_3996 2

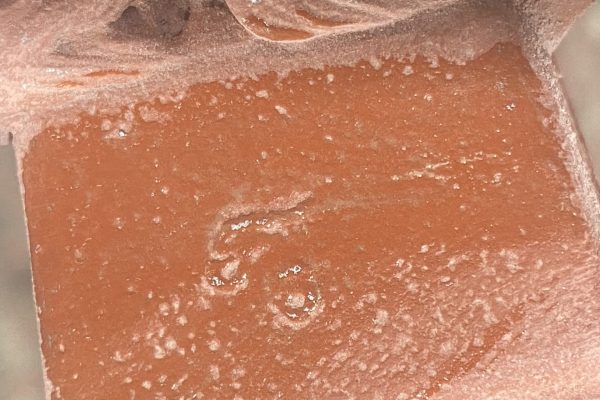

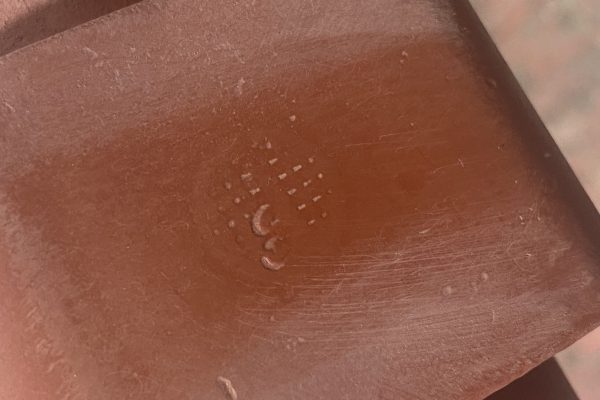

Ford GPW Rear Axle Set Up

Early Ford GPW Axle that we had in for rebuild and diff set up.
The Axle was first stripped and the axle casing was blasted and primed.

We then ultrasonically cleaned all internal parts prior to assembly.


Once clean all parts were examined for damage and wear.

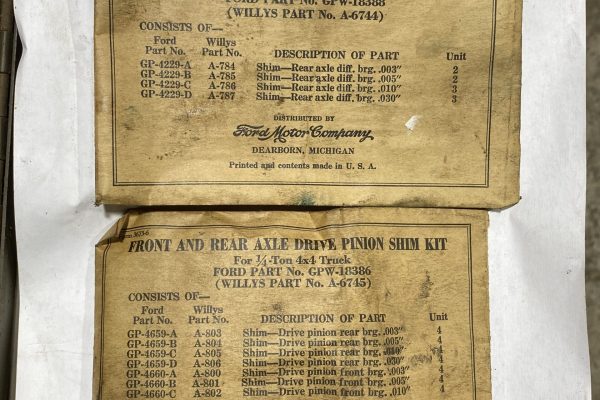

We replaced parts as necessary including genuine the genuine Timken bearings that we keep in stock.

New inner diff seals were installed with the correct Miller tool.

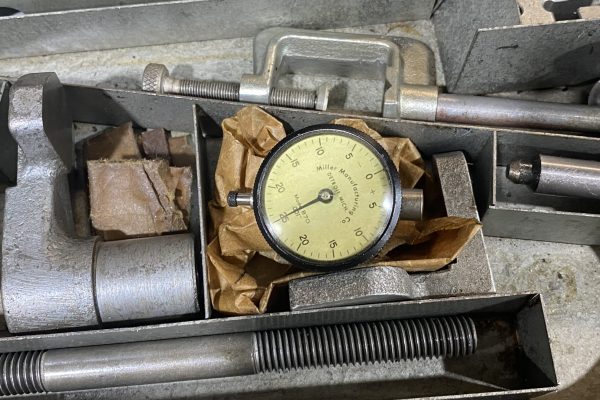

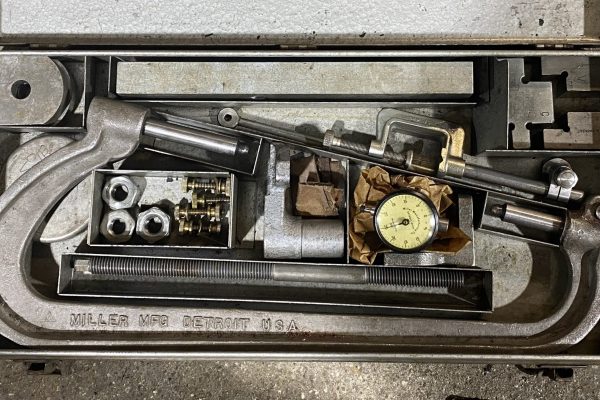

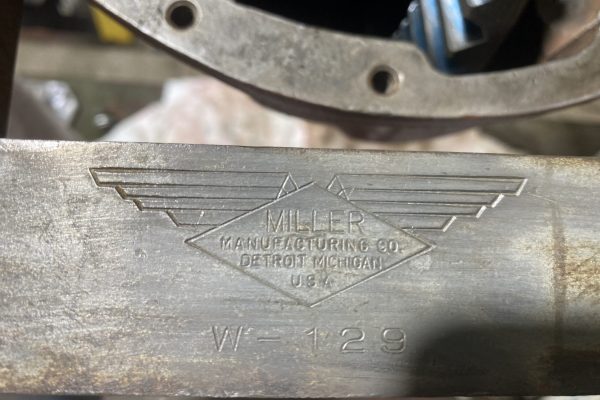

The axle was then re-assembled and set up, all with the genuine Miller tools.

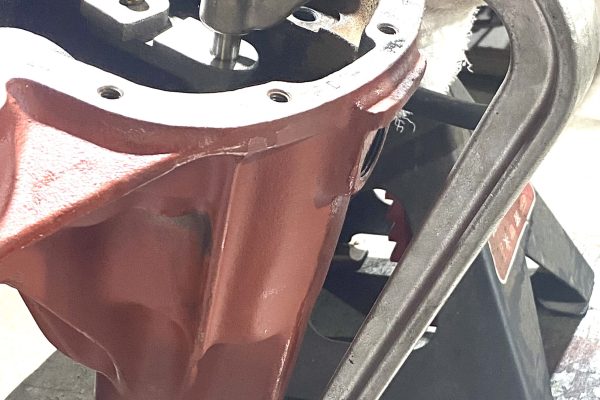

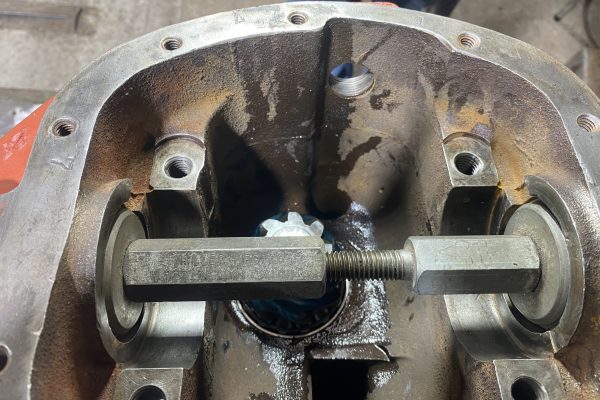

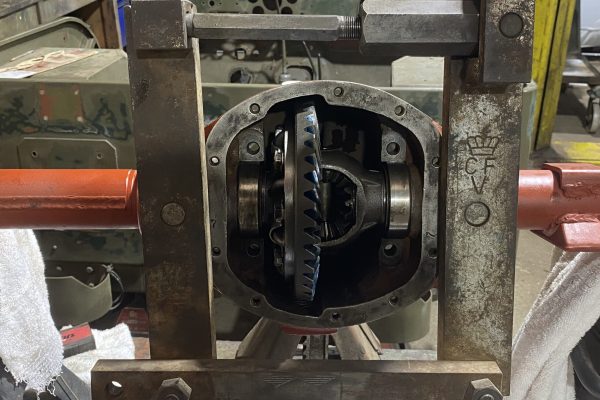

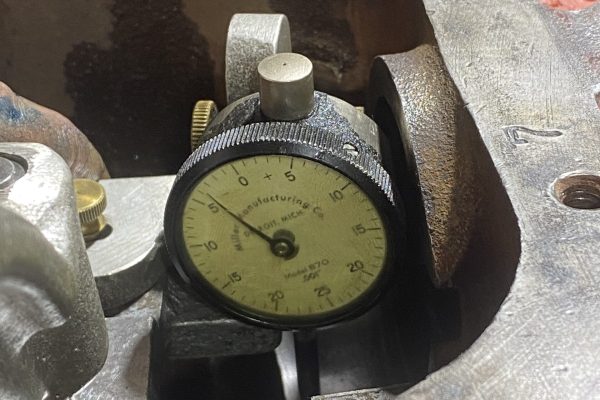

Along with many other tolerance checks, we used the miller tools to set the correct pinion height, set pinion bearing preload, set diff carrier bearing preload, we also used the special Miller tool to ‘stretch’ the axle casing, to enable removal of the differential assy.

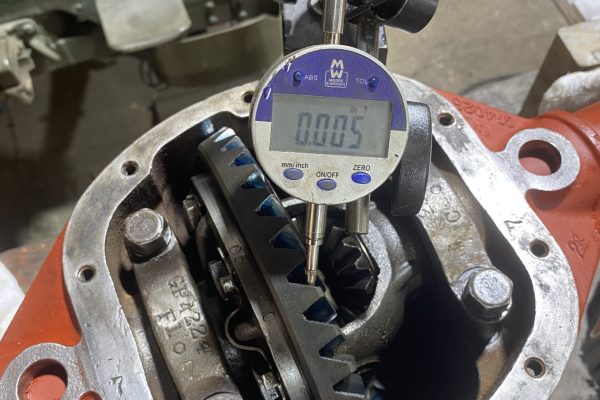

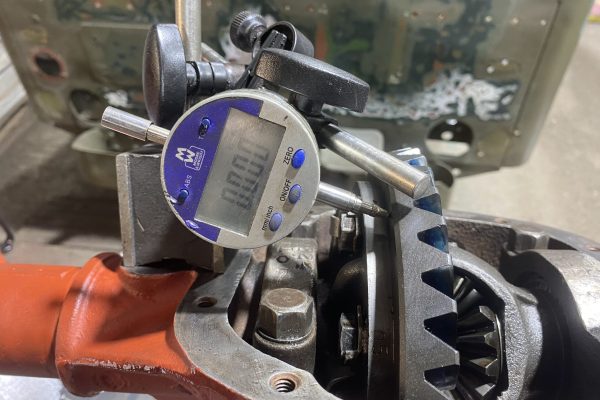

Once fully assembled, we then could check the backlash, crown wheel run out and then with marking blue check contact tooth pattern on crown wheel.

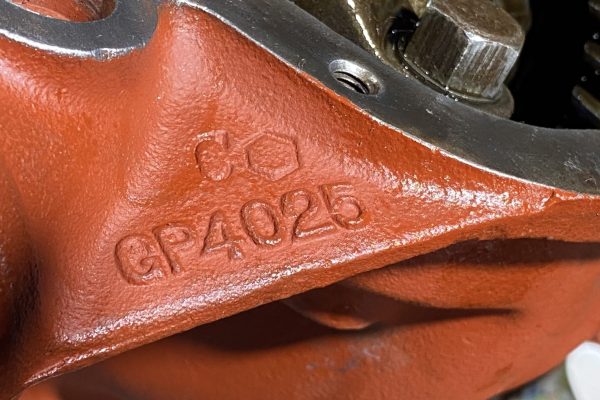

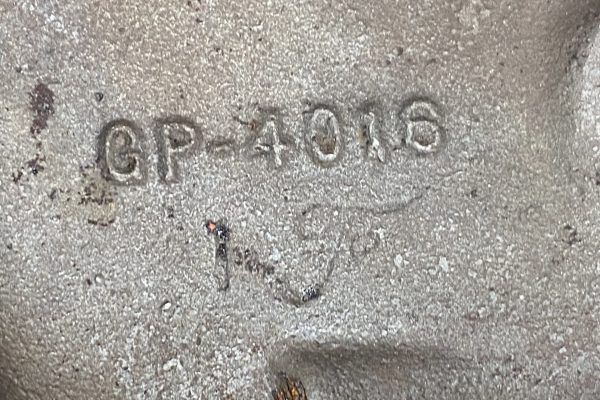

The axle was exceptionally well marked with ‘F’ Scripts, we will soon built it up completely, using a many original Ford Parts.

More Pics to follow…..

Many of the parts used are kept in stock at Dallas Autos.

If you require any axle components for your rebuild, please have a look at the

AXLE SECTION on our website, or please call if you can’t see what you require

IMG_0631
IMG_0606-scaled
IMG_0607-scaled
IMG_0609-scaled
IMG_0610-scaled
IMG_0611-scaled
IMG_0613-scaled
IMG_0614-scaled
IMG_0615-scaled
IMG_0618-scaled
IMG_0619-scaled
IMG_0621-scaled
IMG_0622-scaled
IMG_0625-scaled
IMG_0626-scaled

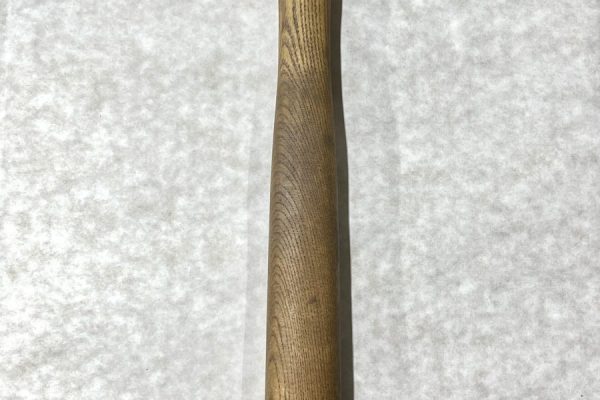

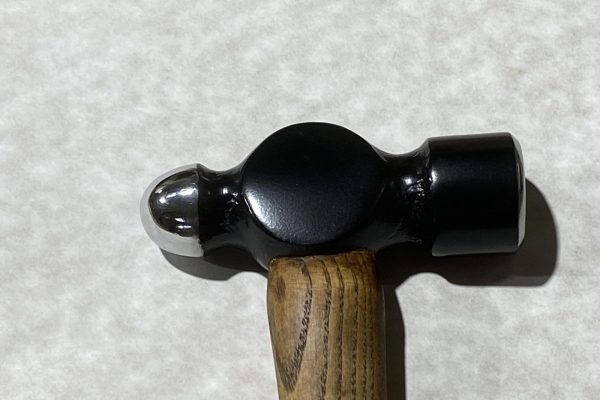

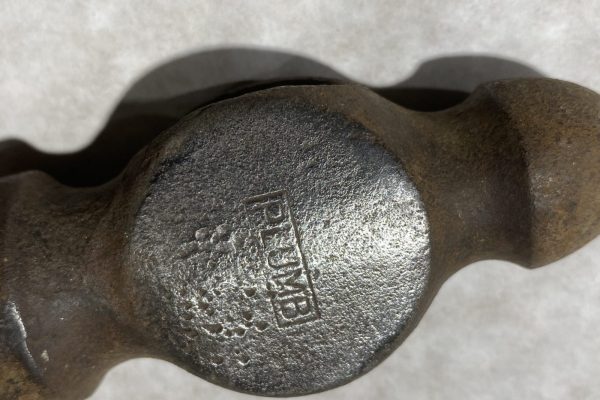

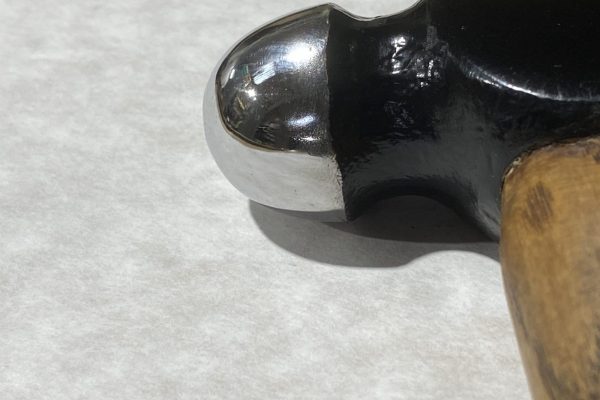

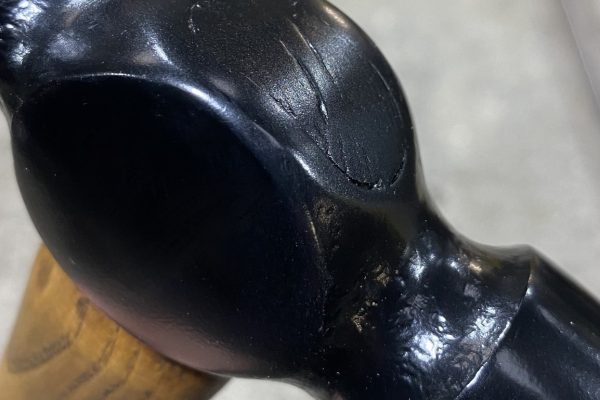

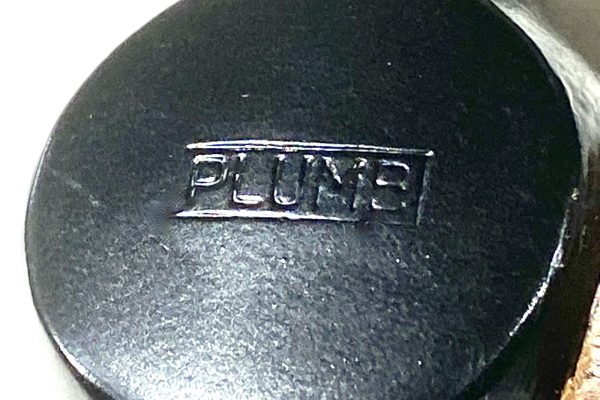

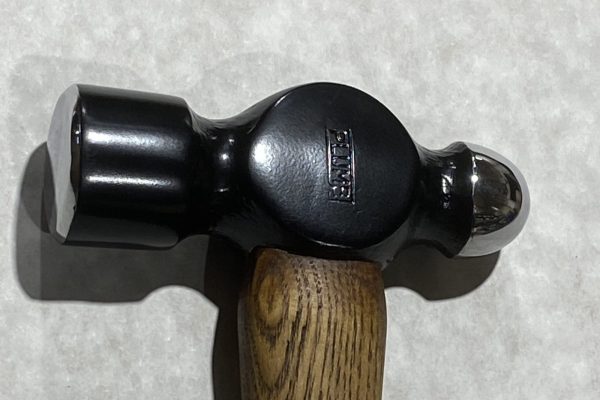

Plumb 16oz Hammer Restoration

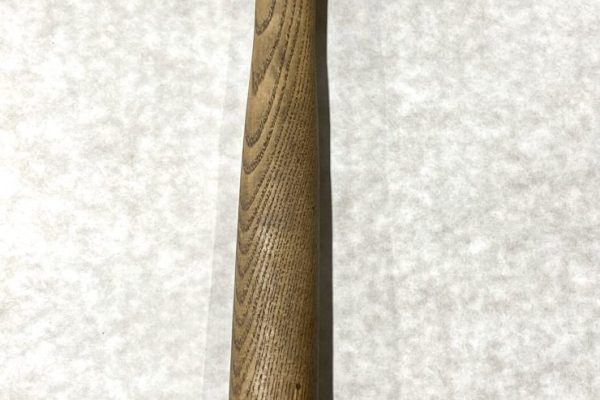

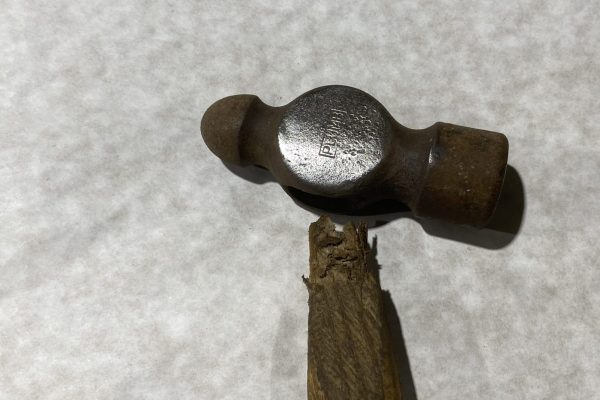

My Father gave me this old 16oz Plumb USA Ball Pein Hammer, I thought that it would make a good small restoration project.

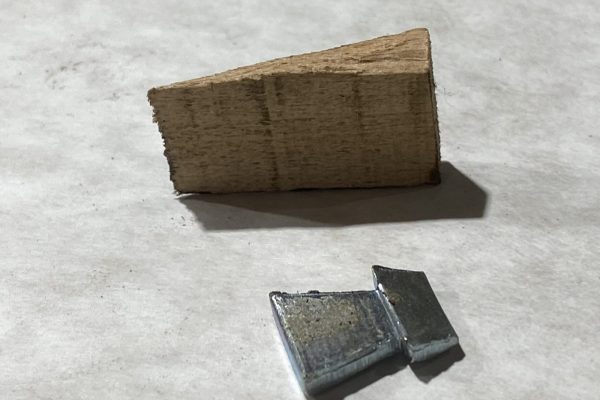

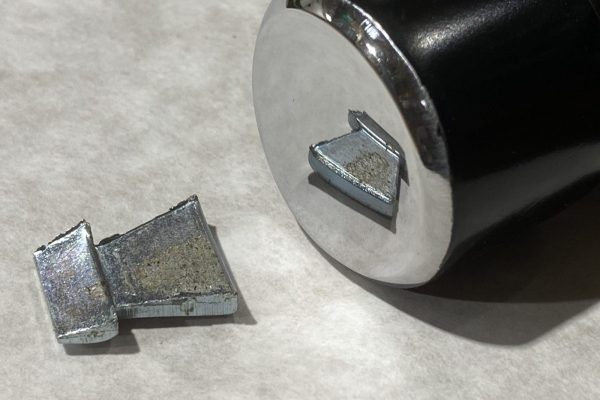

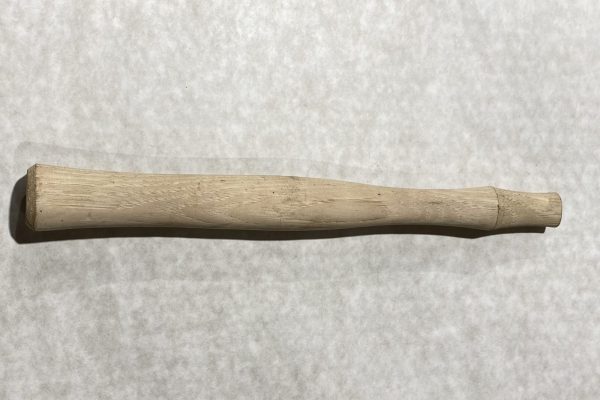

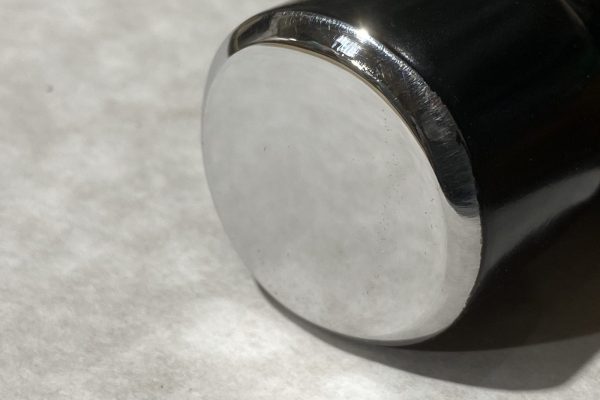

I managed to source a handle and wedge set, then set about cleaning up the head and polishing the faces.

I personally prefer older tools as they tend to be much better quality, overall I was pleased with the end result.

If you are looking for any tools / accessories please click here on ACCESSORIES/TOOLS

IMG_5050
IMG_5051
IMG_5054
IMG_5056

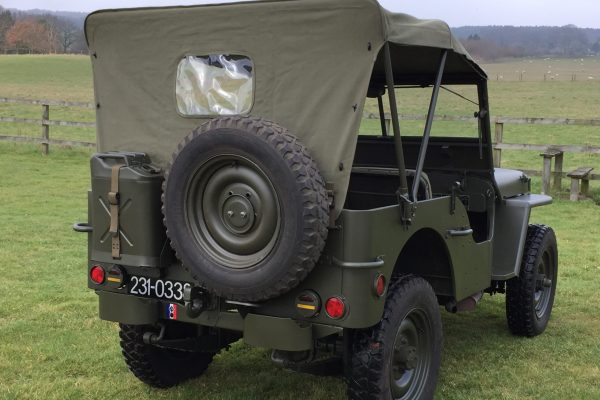

1963 Hotchkiss M201 Respray

1963 Hotchkiss M201 respray using the correct M201 French colour, we have now matched the correct French shade of Green and It is available to purchase from Dallas Auto’s.

We also sell the correct French decals as seen in these pictures.

IMG_0355
IMG_0356
IMG_0357
IMG_0361
IMG_0362
IMG_0363
IMG_0364
IMG_0367
IMG_9366
IMG_9368
IMG_9369
IMG_9371
Carter-Carb-KIT-1
Carter-Carb-KIT-2-1
Carter-Carb-KIT-3-1
Carter-Carb-KIT-4-1
Carter-Carb-KIT-6-1
IMG_0226
IMG_0228
IMG_0232
IMG_0249
IMG_0315
IMG_0318
IMG_0346
IMG_0351
IMG_0354

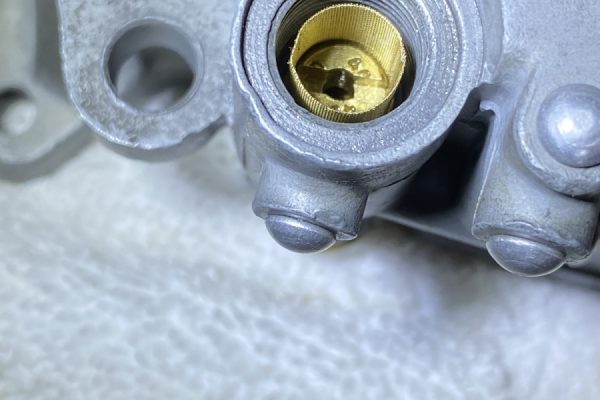

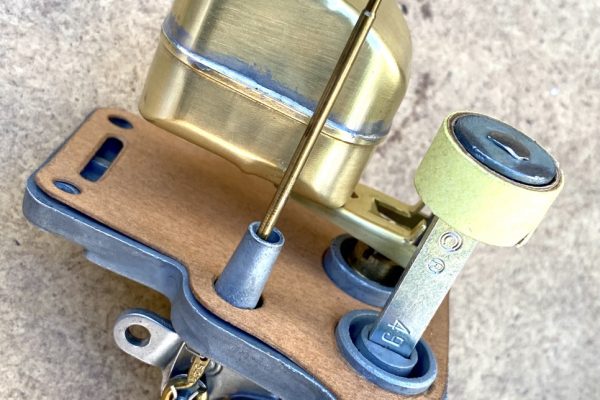

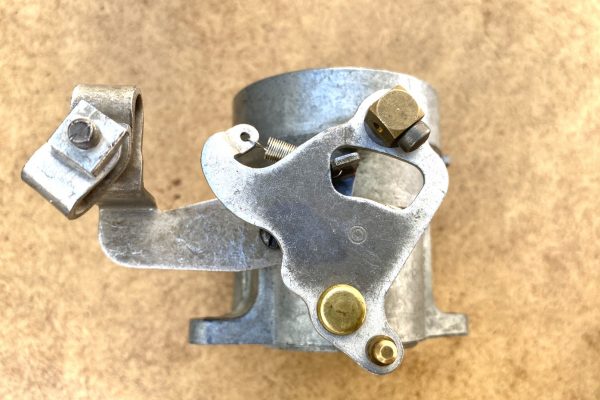

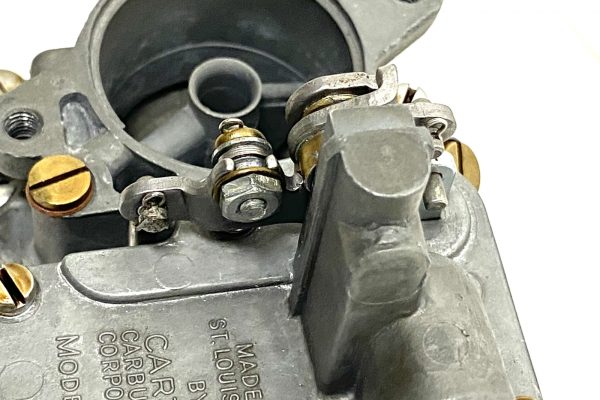

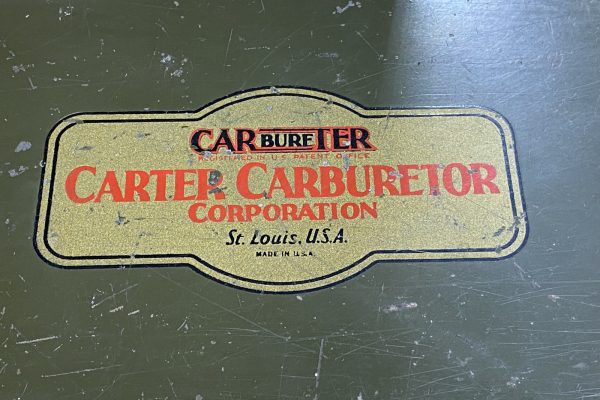

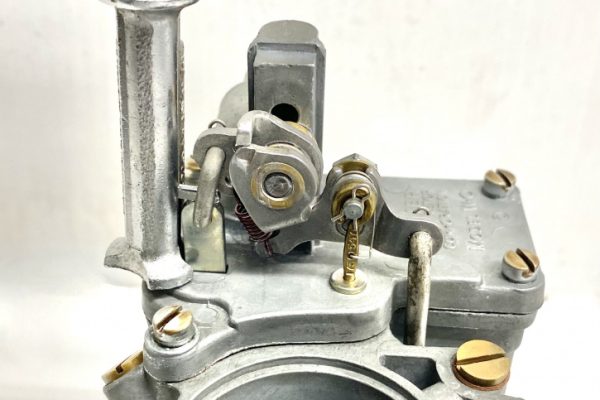

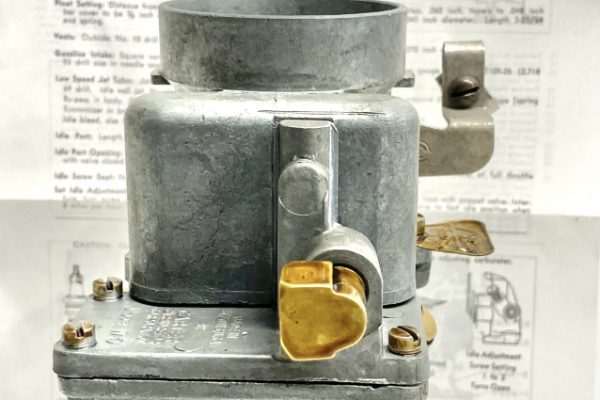

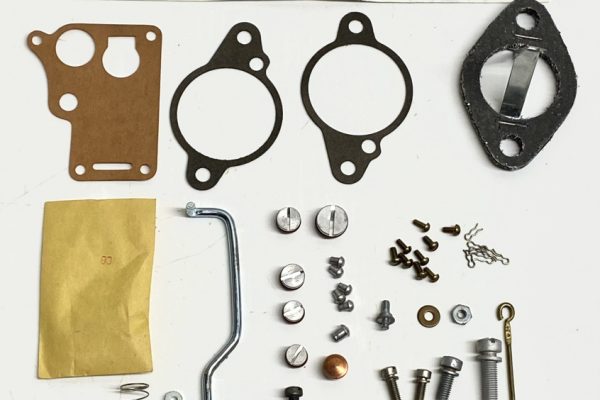

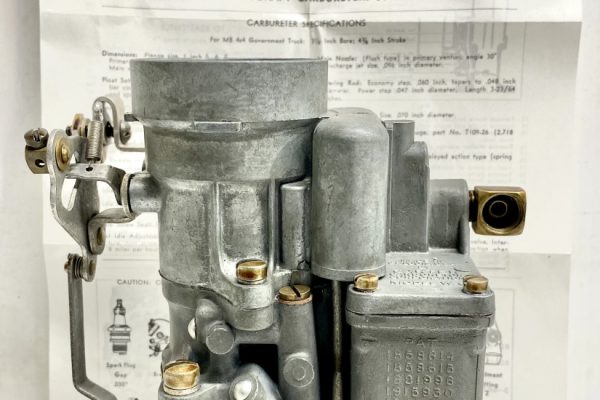

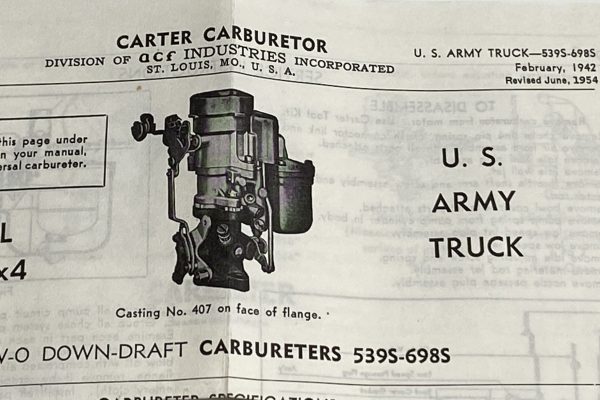

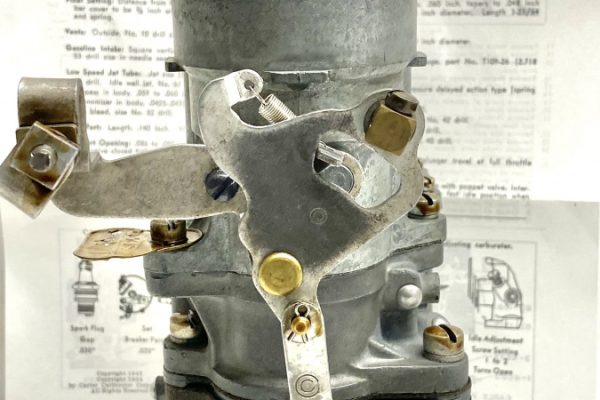

Carter 539s Carburettor Rebuild

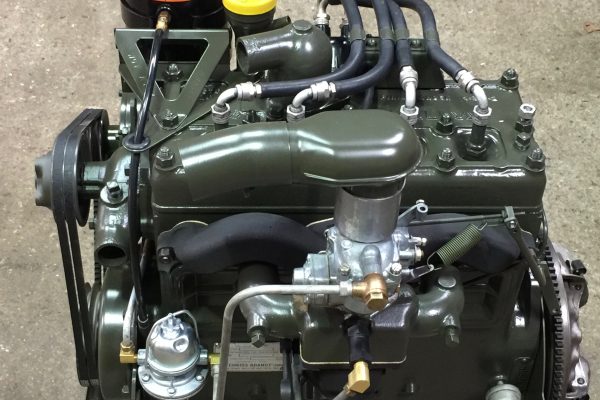

Carter 539s Carburettor rebuild carried out by ourselves at Dallas Auto Parts.

A selection of  NOS and original Carter parts were used to build this particular carburettor.

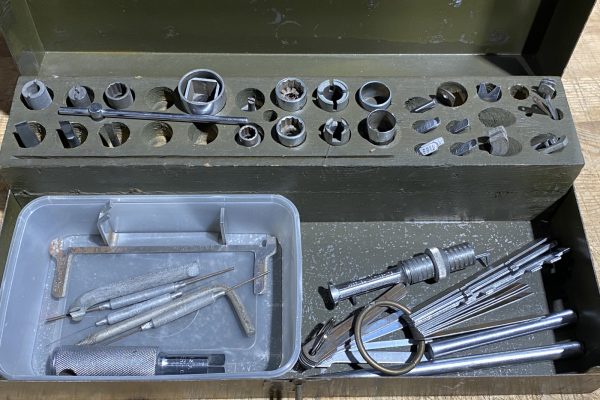

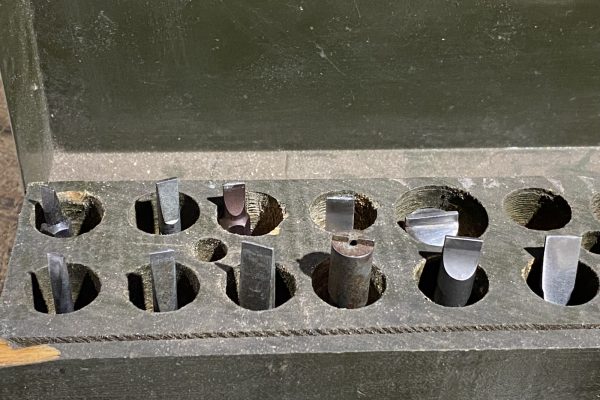

The Carburettor was assembled using genuine Carter Tools and specialist screwdrivers made in house to avoid marking brass components and screw slots.

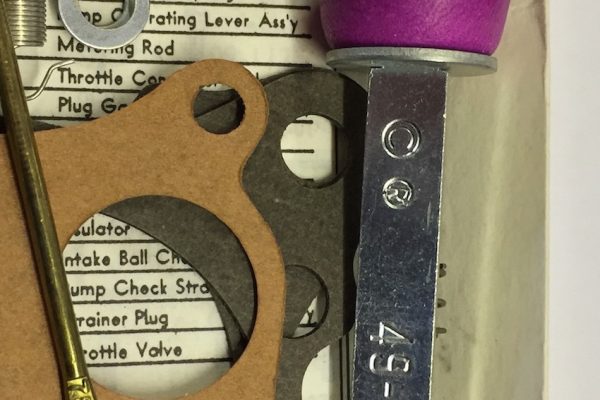

We also used one of our excellent, original and genuine Carter rebuild kits that can be purchased on our online store.

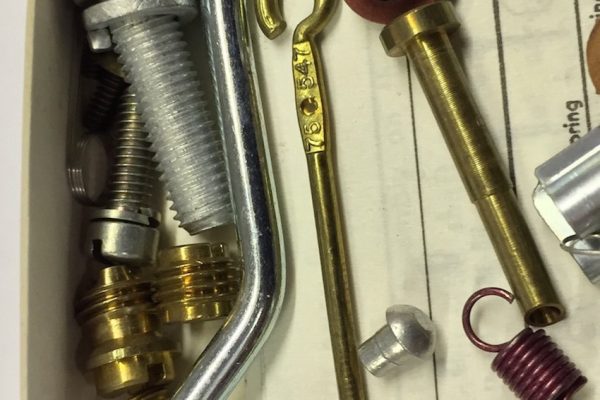

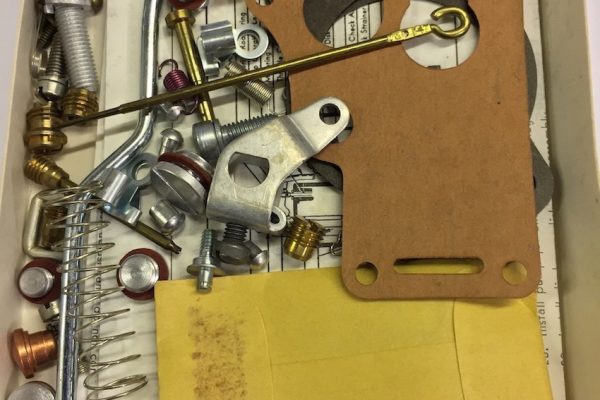

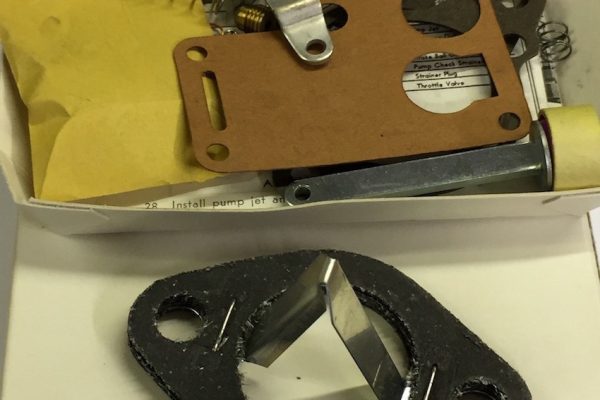

The kit comprises of jets, gaskets, needle and seat, diffuser gasket, accelerator pump, springs, selection of screws, Jet plugs and gallery bungs.

Using Genuine Carter products, you are assured that the quality of a rebuild is not compromised.

IMG_5152-2
IMG_5154-2
IMG_5160-2
IMG_5176
IMG_5178

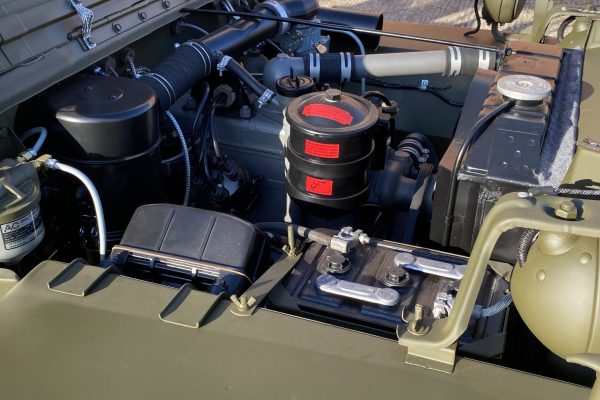

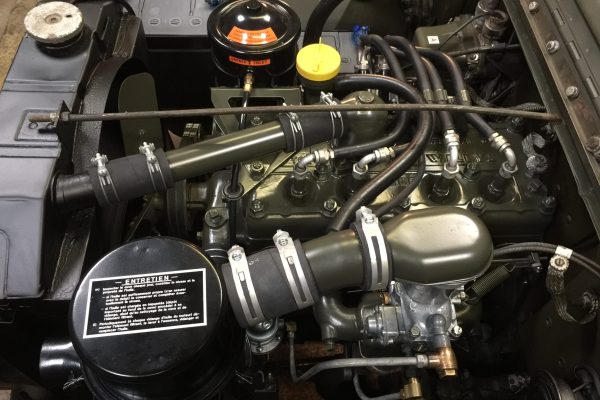

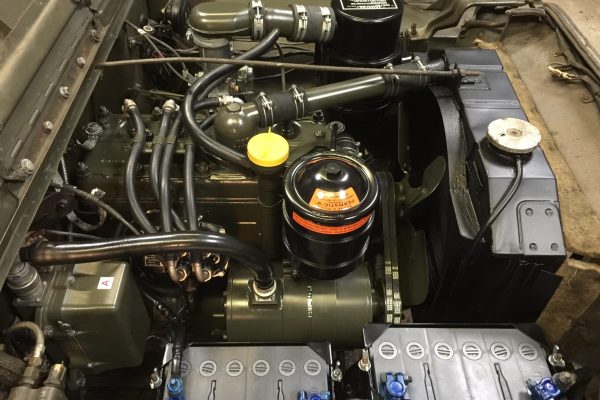

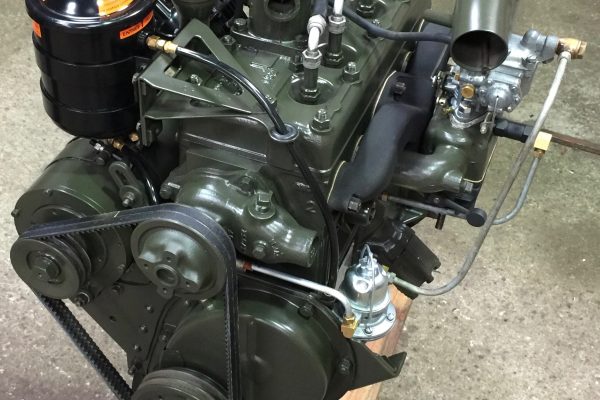

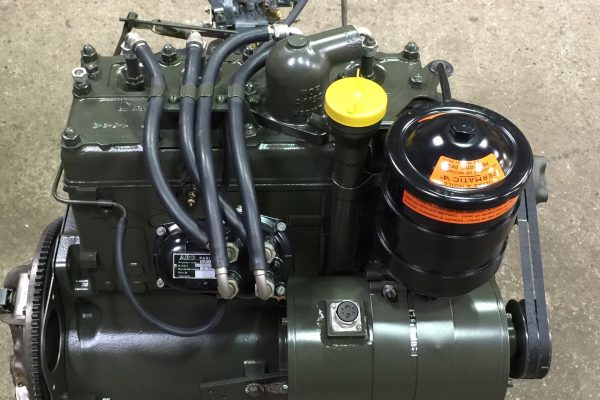

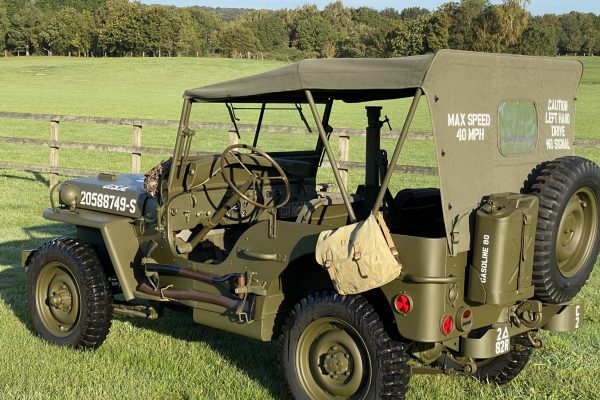

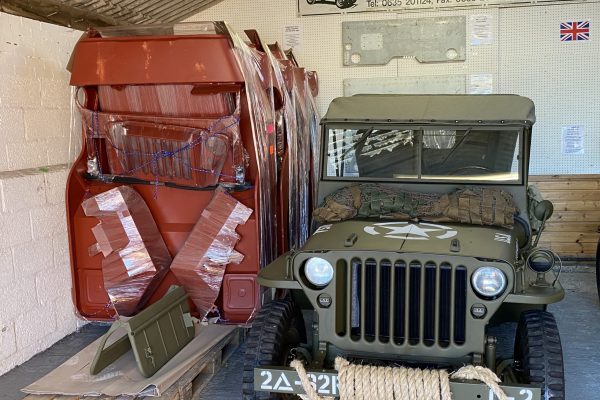

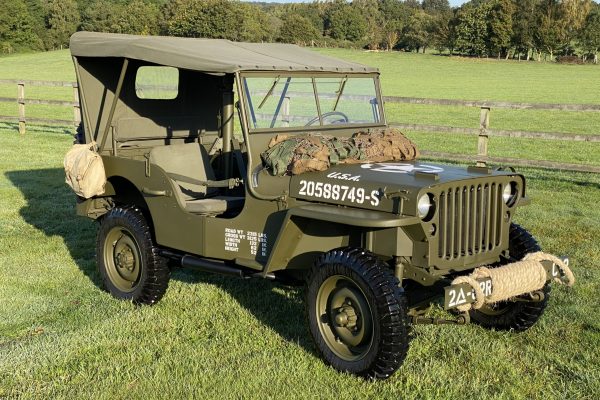

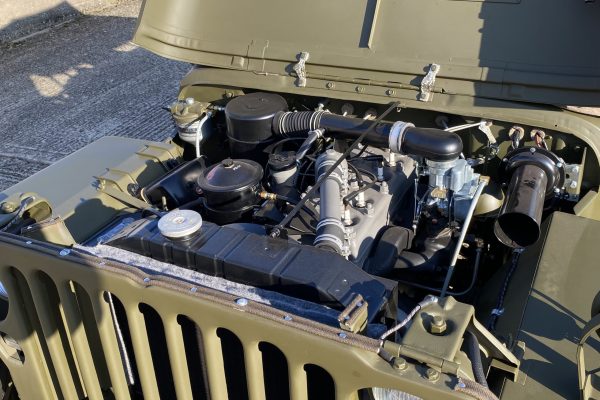

1963 Hotchkiss M201 Engine rebuild

1963 Hotchkiss M201 engine rebuild carried out at Dallas Auto’s. Hardened seats fitted for unleaded use. Fully balanced assembly inc crank, flywheel, clutch and front pulley. Rods and pistons weighed and matched. High compression versions available to order. All ancillary items painted and detailed in house. Ceramic coatings on complete exhaust system Photographic records of complete build and video of initial start up presented to the customer.

Upgraded items include Electronic Ignition Kit, K&N air filter conversion and 24 Volt electronic regulator conversion, as you can see in the pictures the upgrades are non detectable and the engine bay looks completely standard.

These M201 upgrades and many others can be seen and purchased from our ONLINE STORE – Please click.

IMG_4388
IMG_4390
IMG_4392
IMG_4394
IMG_4396
IMG_4397
IMG_4398
IMG_4399
IMG_4400

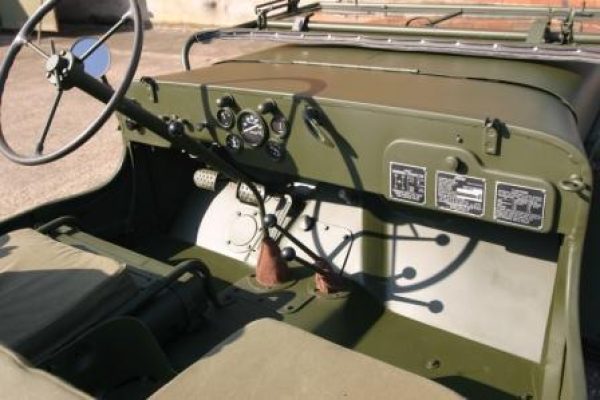

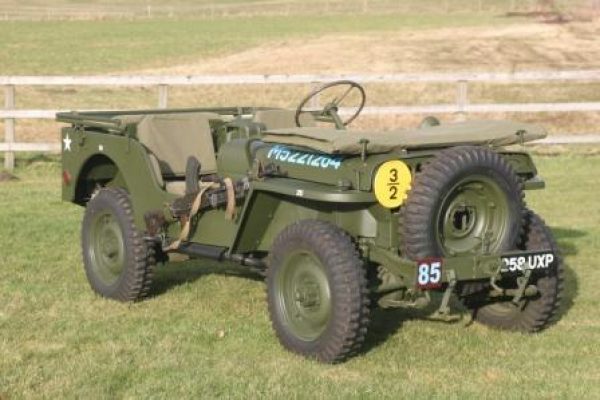

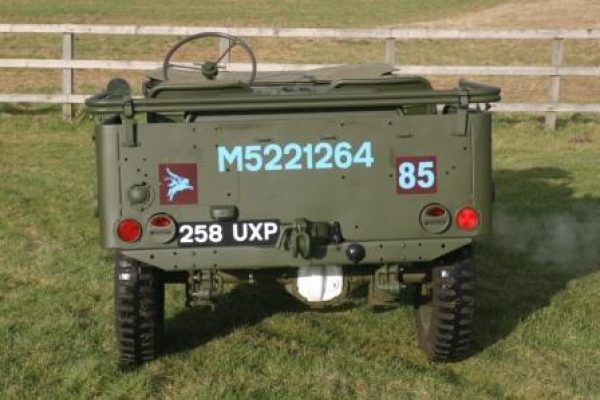

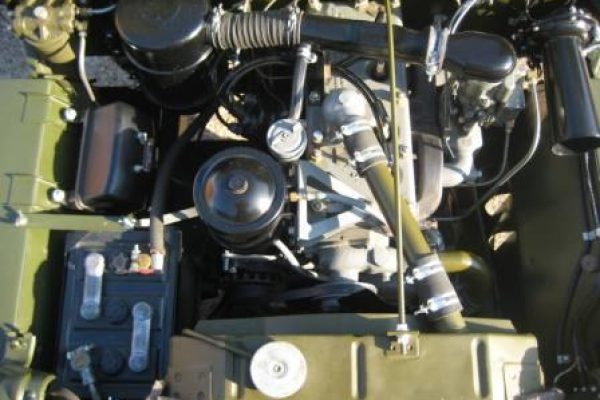

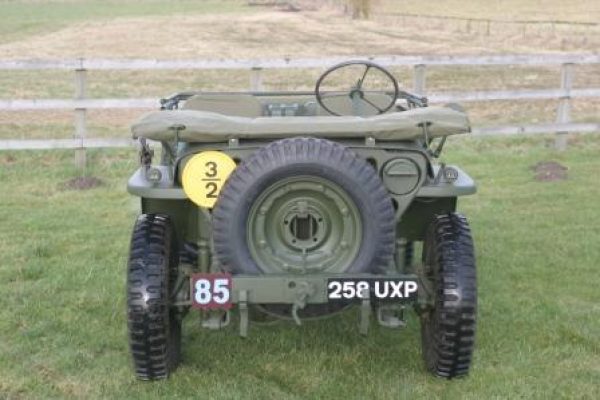

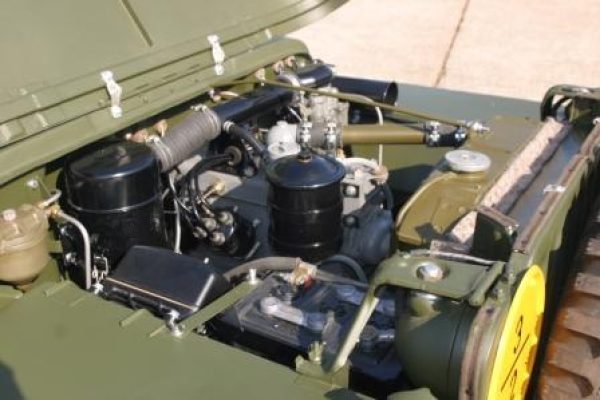

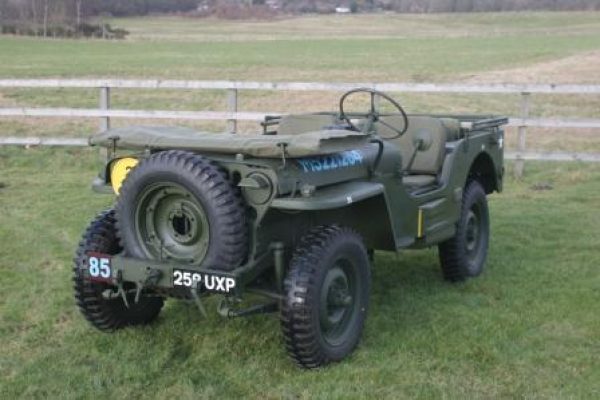

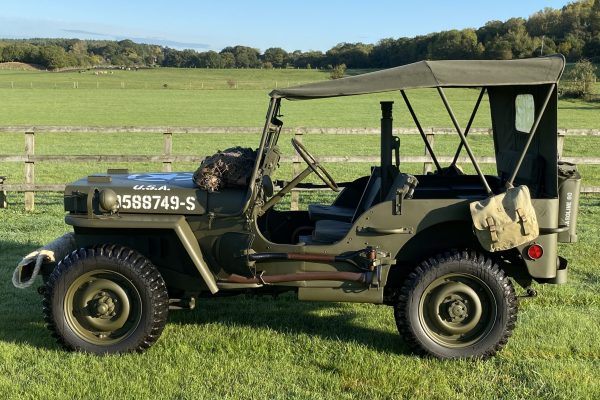

1944 GPW Customers Own Restoration

This excellent Jeep was restored by one of our customers, he kindly let us display his Jeep, so we can show potential customers what standards can be accomplished.

Dallas Autos supplied the Body Kit and most of the parts used to restore the Jeep and is painted in our WW2 Factory green paint.

img6709a
img6709b
img6709c
img6709d
img6709e
img6709f

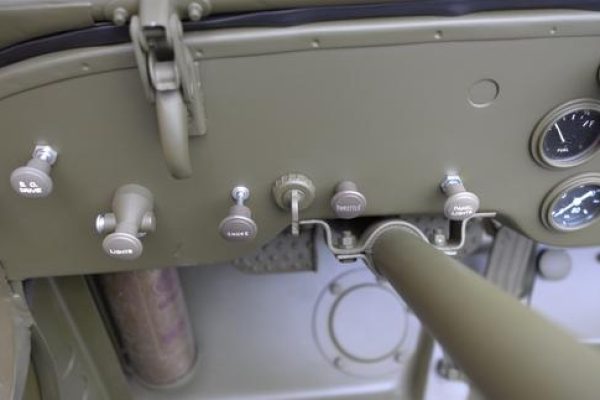

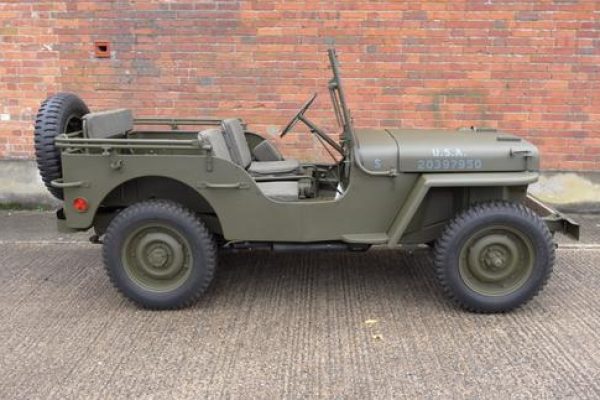

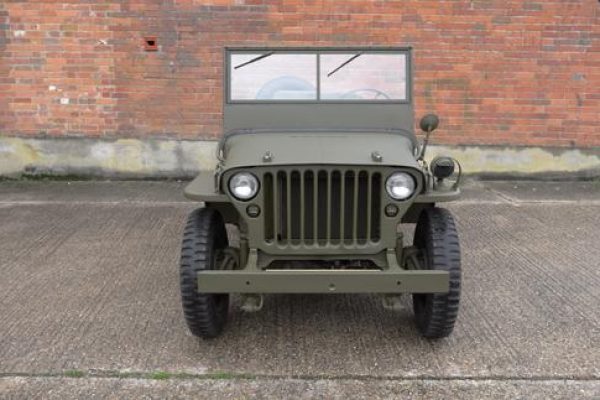

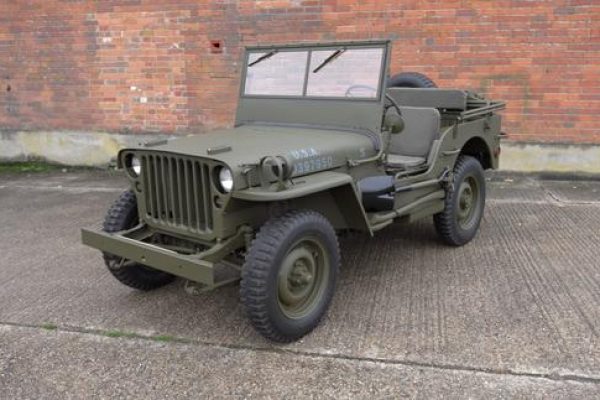

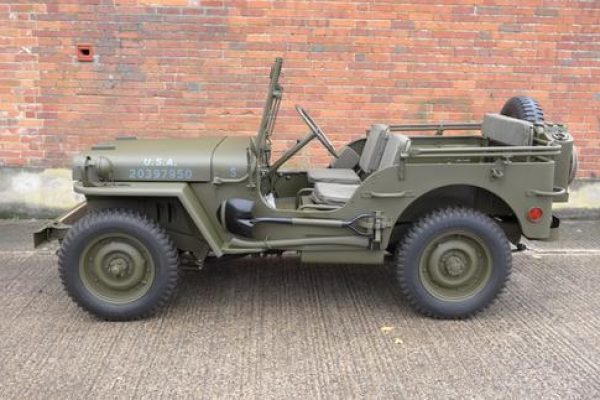

Airborne Jeep

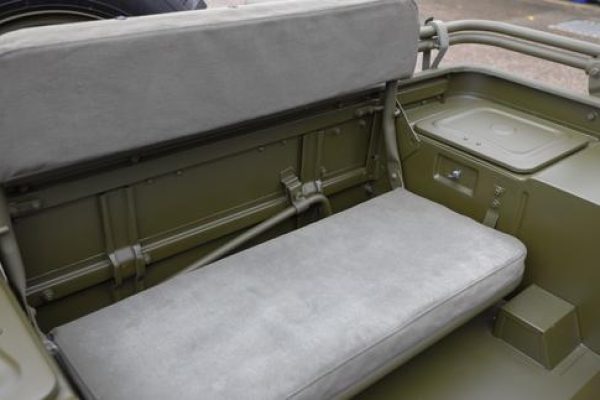

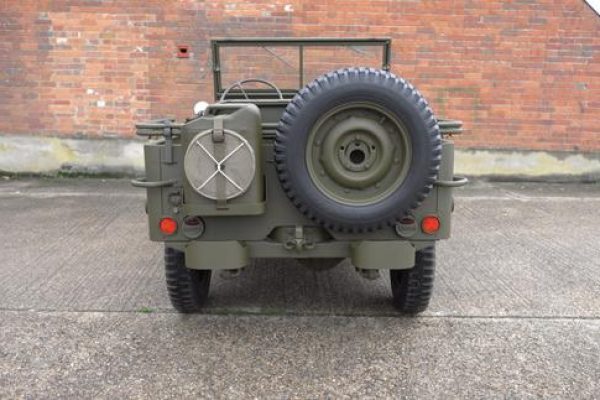

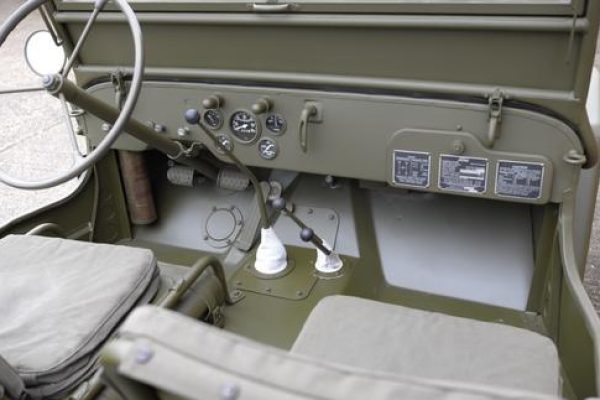

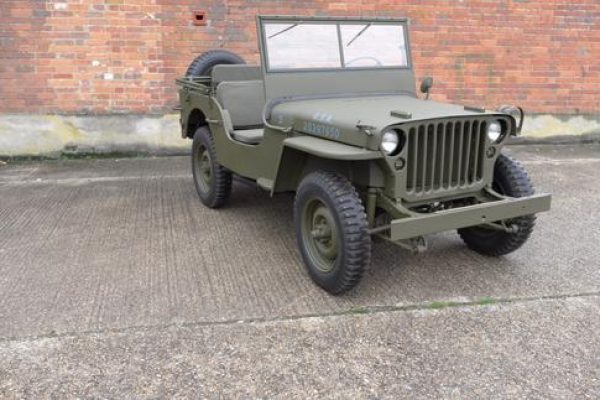

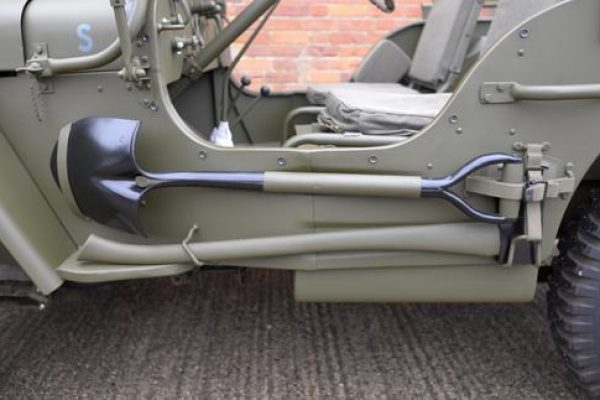

Ford GPW, restored and converted to British Airborne specification at Dallas Auto’s.

img7754a
img7754b
img7754c
img7754d
img7754e
img7754f
img7754g
img7754h
img7754i

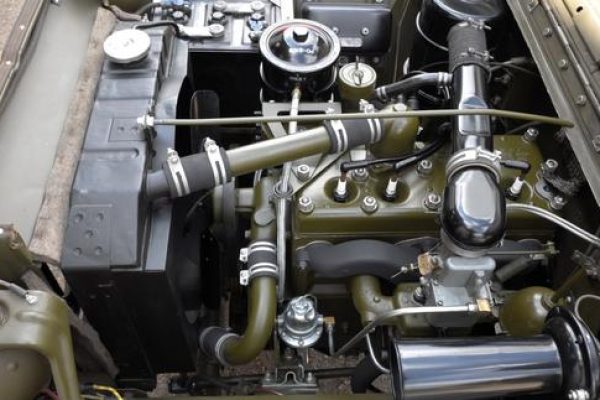

1943 Ford GPW

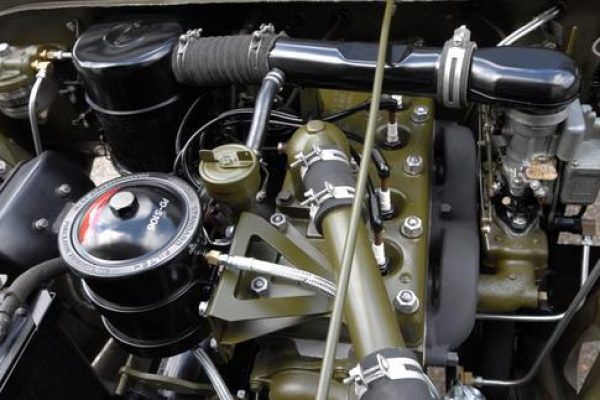

1943 Ford GPW restored by Dallas Auto’s, finished in our Matt paint, with factory blue numbers.

img7779a
img7779b
img7779c

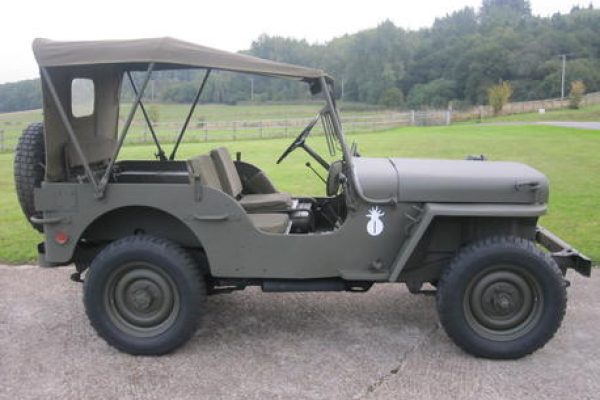

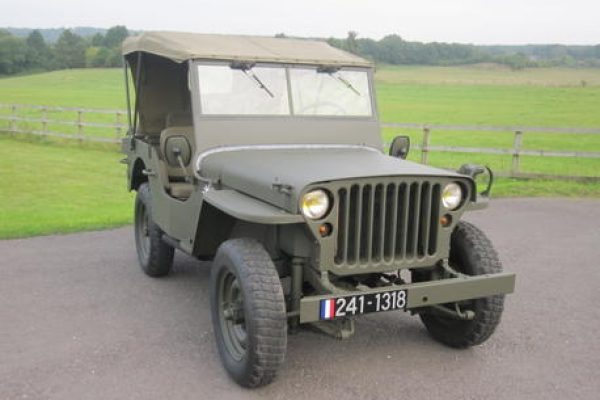

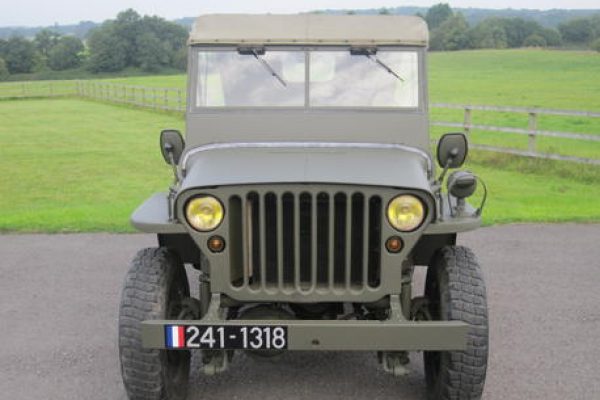

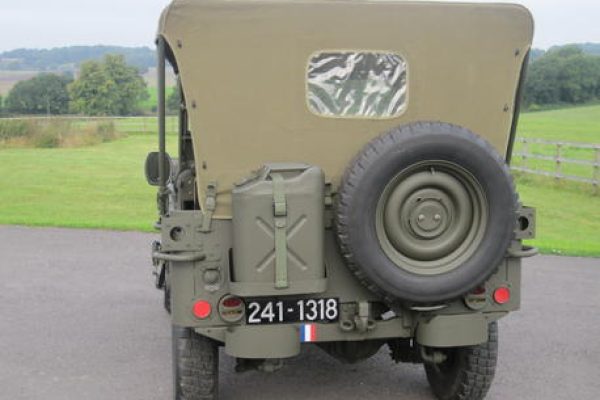

1943 MB Engine rebuild

Full engine rebuild carried out at Dallas Auto’s. Original Willys MB block, machined, sleeved and hardened seats fitted for unleaded use. Epoxy resin filled to ensure total seal of any porous casting. Fully balanced assembly inc crank, flywheel, clutch and front pulley. Rods and pistons weighed and matched. High compression versions available to order. All ancillary items painted and detailed in house. Ceramic coatings on complete exhaust system Photographic records of complete build and video of initial start up presented to the customer.

img7548a
img7548b
img7548c
img7548d

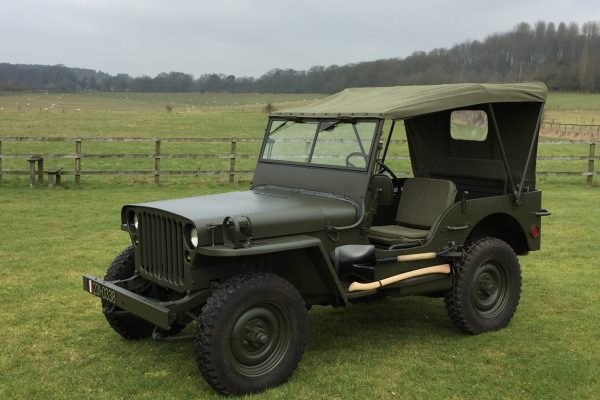

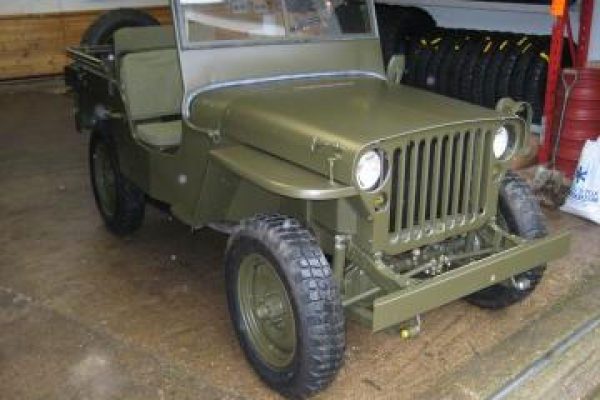

1964 Hotchkiss M201 Respray

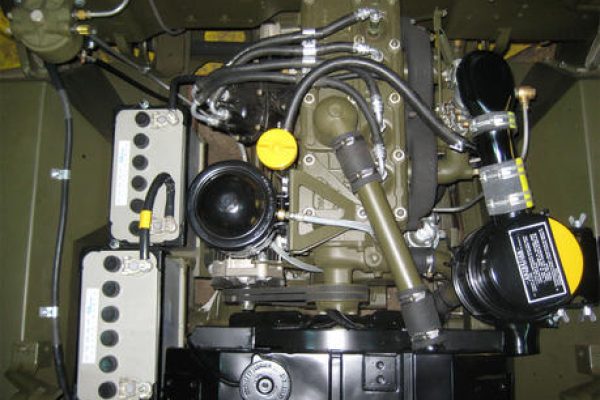

1964 Hotchkiss M201 which we have just resprayed, this has been finished off with the French Army markings. We have also installed one of our electronic ignition kits and have fitted a K & N air filter conversion, both of these items we keep in stock.

img6578b
img6578a

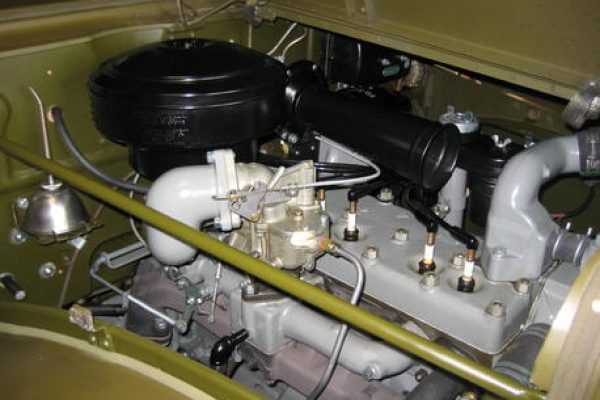

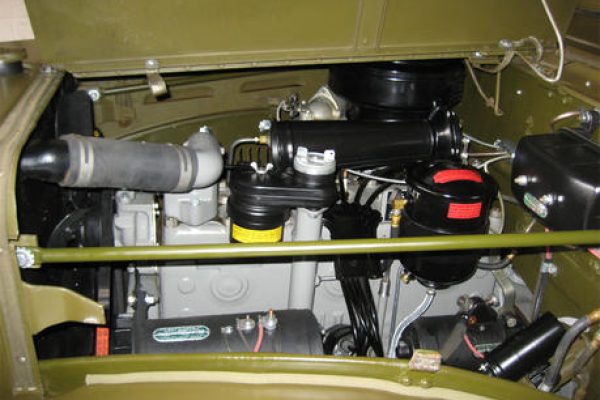

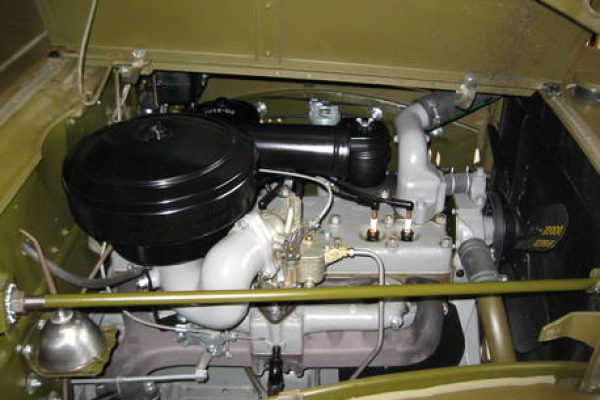

Hotchkiss M201 Jeep Rebuild

Hotchkiss M201 rebuilt carried out at Dallas Auto’s.

img6575a
img6575b

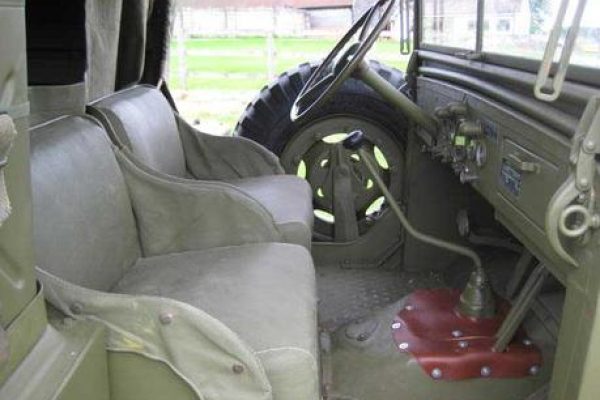

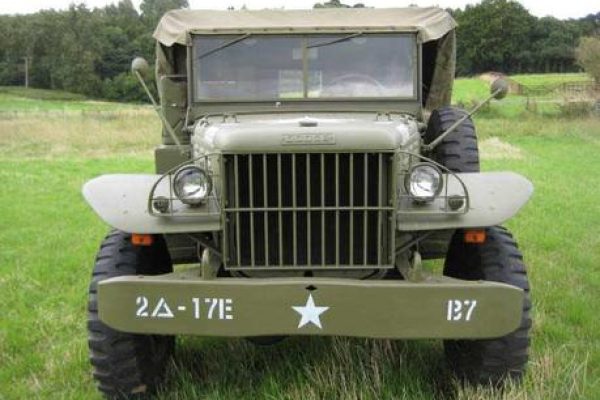

Newley installed WW2 Dodge Engine

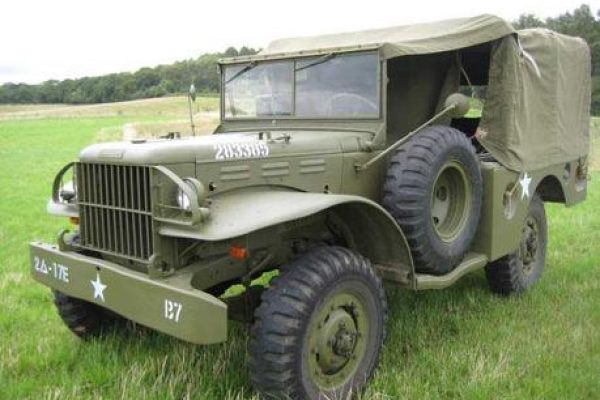

This Dodge Command Car Engine was completely ovehaulled at Dallas Auto’s.

img6563a
img6563b
img6563c
img6563d

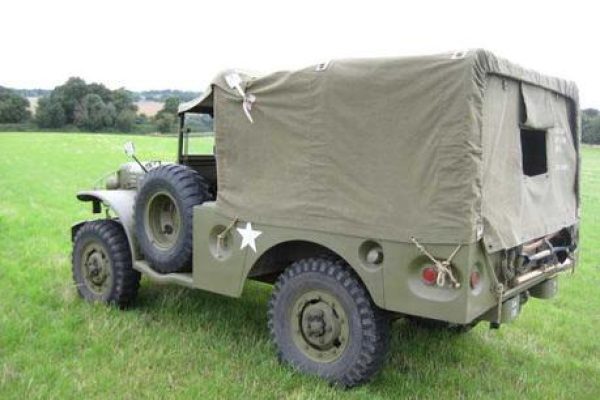

WW2 Dodge 1942 WC 51 Weapons Carrier

1942 Dodge WC 51 Weapons Carrier. The bodywork was very straight and original. The vehicle had been resprayed and was supplied with new canvas and all pioneer tools.
